high speed label slitting machine
Machine name

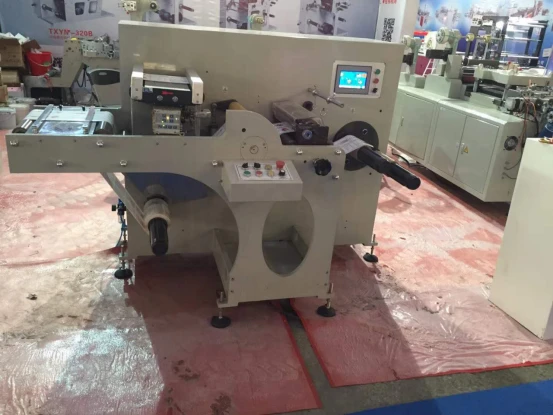

FQH-320 high speed label slitting and rewinding machine
Auto slitting machine FQH-320 type is a complete set of equipment for full automatic roll trademark printing machine and roll die cutting machine.
Machine Description
1.Auto slitting machine FQH-320 type is a complete set of equipment for full automatic roll trademark printing machine and roll die cutting machine.
2.It is applicable to slit the narrow scope paper, automatic counting the length(meter), quantity of paper(piece) and setting the length, automatic stopping, giving an alarm and unreeling, magic eye automatic correcting the error, inflatable shaft receiving material, tension controlling.
3.Recording Paper number import electric eye , So it is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.
4.3kw Servo motor in unwinder, feeding material servo motor 1.8kw,rewinder servo motor,PLC,rectify device Techmark
Products Description
|
Model |
FQH-320 |
|
Max web width |
320mm |
|
Max unwinding diameter |
500mm |
|
Max rewinding diameter |
480mm |
|
Min width |
18mm |
|
Cutting speed |
300m/min |
|
Overrll dimensions(L*W*H) |
2070*1200*13520mm |

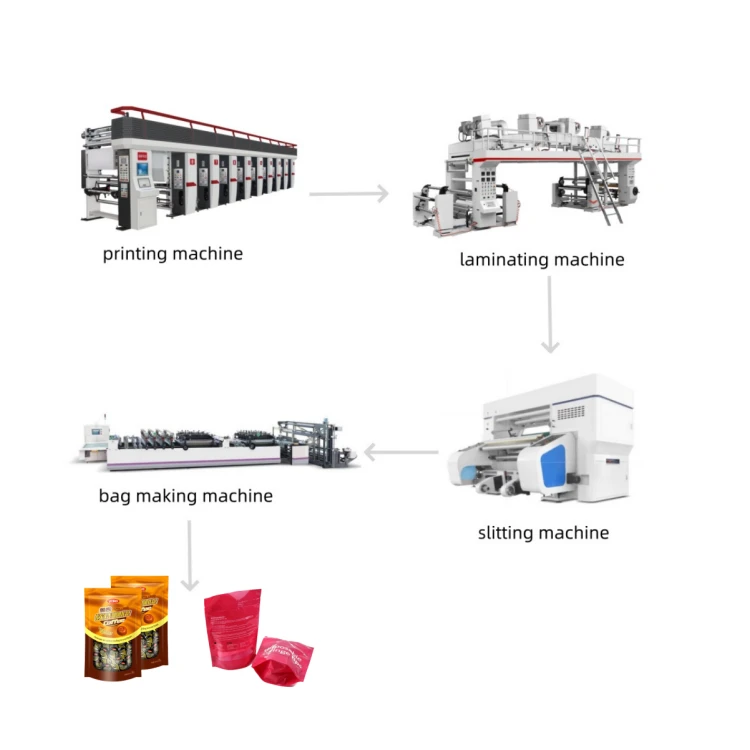

Product Production Process
FAQ
Q: What are the application areas of slitting machines?
Q: What are the application areas of slitting machines?
2. Printing industry: Cutting and processing printed materials, such as labels, trademarks, etc.
3. Textile industry: Cutting fabrics, fabrics, etc.
4. Electronics industry: Processing electronic materials, such as conductive films, adhesive tapes, etc.
Q: What if there is an unstable tension problem with the slitting machine?
