BOPP Tape Slitting Rewinding Machine
(2)
(3)
4

BOPP Tape Slitting Rewinding Machine

Send Inquiry

Product Introduction

Machine name

BOPP Tape Slitting Rewinding Machine

This BOPP Tape Slitting Rewinding Machine used for slitting many kinds of BOPP sealing tape,fiberglass tape ,adhesive paper and various adhesive product.The BOPP Tape Slitting Rewinding Machine can slit big bopp tape roll to small bopp tape roll.Finish product can used for encapsulate various items such as gifts, food, handicrafts, etc.

Machine Characteristics

BOPP tape jumbo roll slitting machine automatic adhesive cello scotch tape making machine making various specifications of finished adhesive tapes from jumbo roll which has been coated with glue, together with other three machines, core cutting machine,core loading machine and mini rewinding machine.

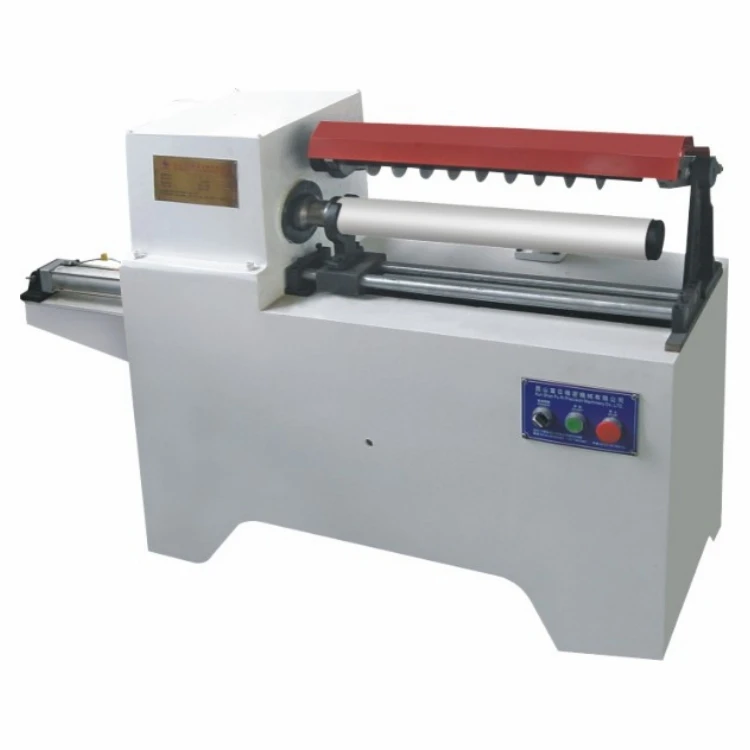

Core Cutting Machine:cutting long paper core to small tape core size

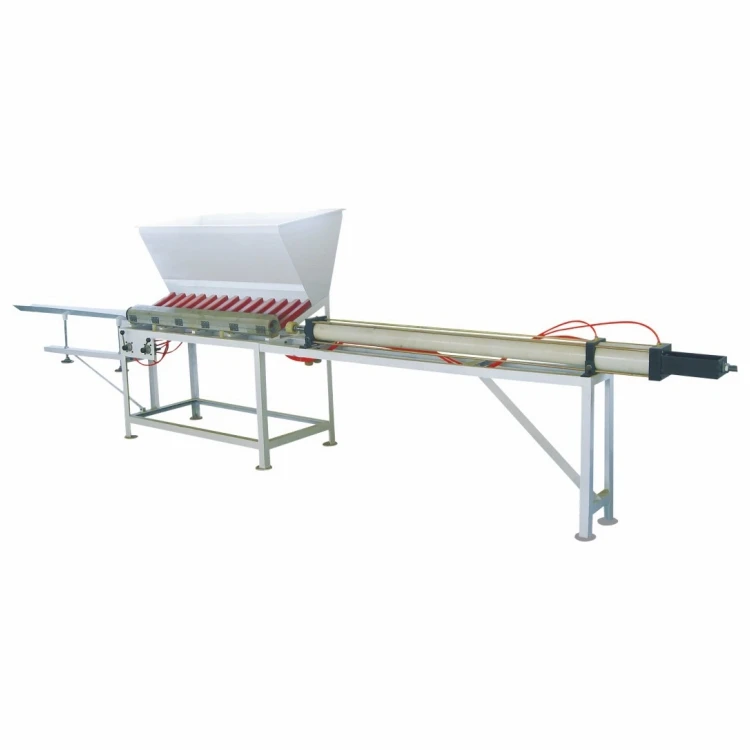

Core Loading Machine:take off tapes from rewinding shafrts same time put paper

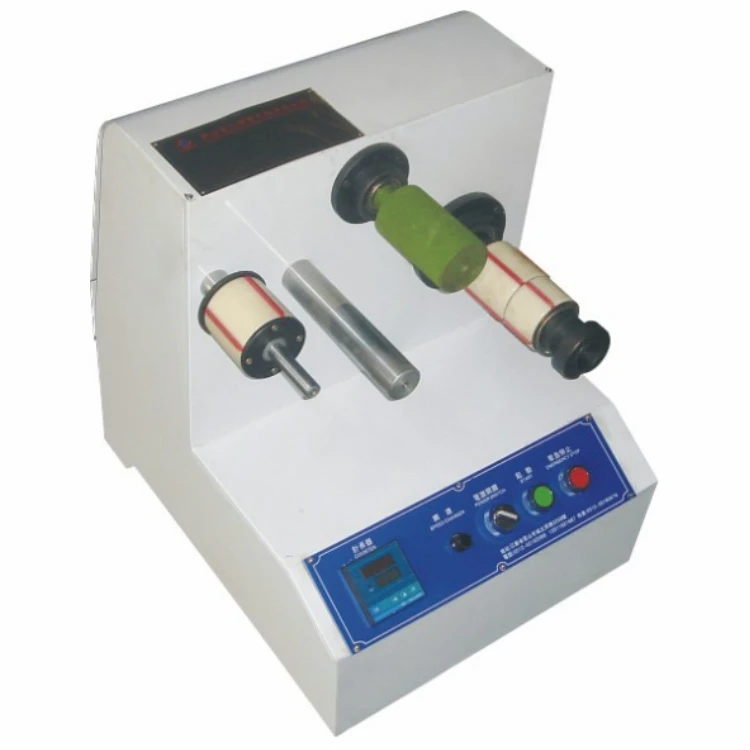

Mini Rewinding Machine:to get poorty tension tapes to good one &wore as length cuonter

Machine Description

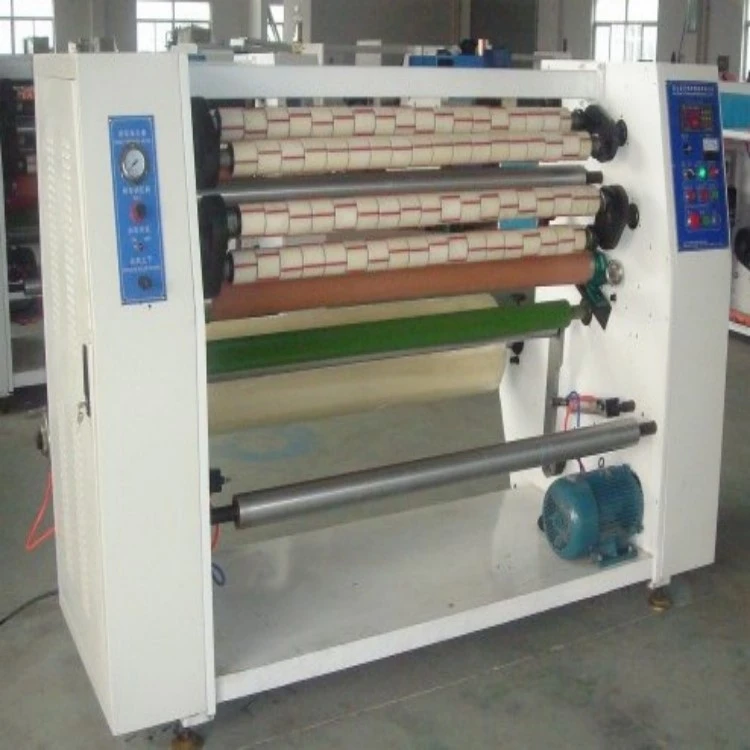

FR1300 BOPP Tape Slitting Rewinding Machine

Machine Technical Data

Type	FR1300
EFFECTIVE WIDTH	1300MM
UNWIND DIAMETER	MAX. 600MM
REWIND DIAMETER	MAX. 150MM
SLITTING WIDTH	MIN. 10MM
PAPER CORE I.D.	3"
MACHINE SPEED	MAX. 180M/MIN
POWER SOURCE	380V 50HZ 3PHASE
AIR SOURCE	5KG (PREPARED BY USER)

ACCESSORIES

CORE LOADING MACHINE	FR-103 WORKING WIDTH: 1300MM I.D. OF PAPER CORE: 3" AIR COMPRESSOR: 5KG (PREPARED BY USER)
CORE CUTTING MACHINE	FR-203 MAX. CUTTING WIDTH: 500MM MIN. CUTTING WIDTH: 12MM I.D. OF PAPER CORE: 3" THICKNESS OF PAPER CORE: MAX. 5MM AIR COMPRESSOR: 5KG (PREPARED BY USER) MOTOR: 2HP PE TUBE CIRCULAR BLADE: Φ7625.4MM1.2T
MINI REWINDING MACHINE	FR-200 MAX. UNWIND DIAMETER: 300MM
ALUMINIUM MOULD	MAX. UNWIND WIDTH: 100MM

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

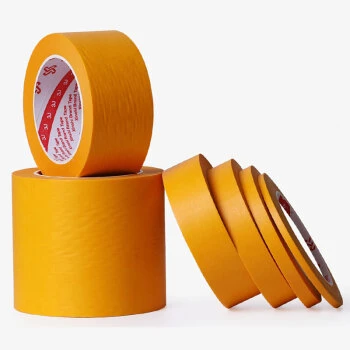

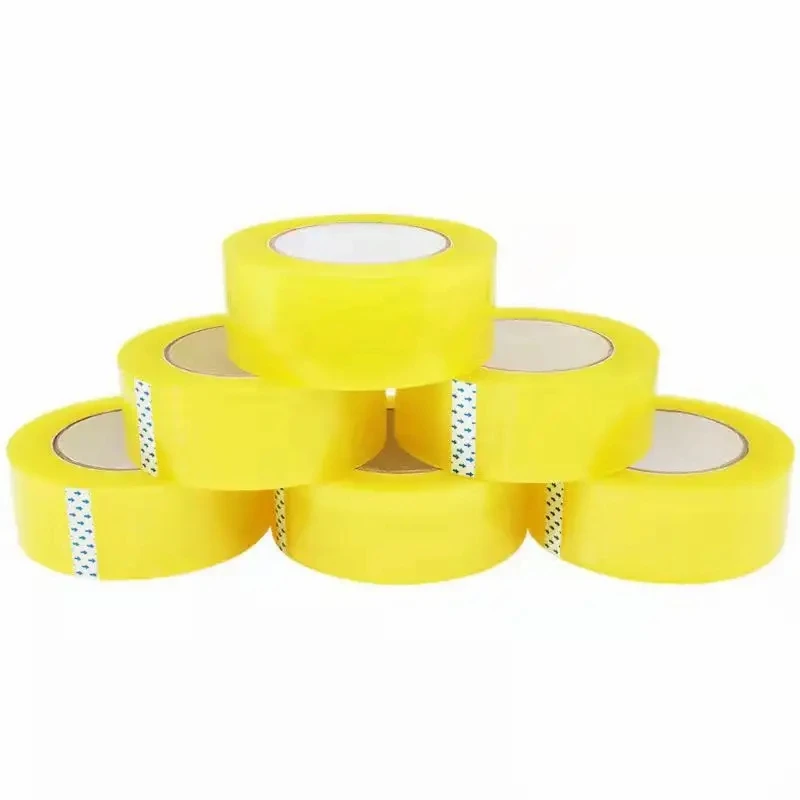

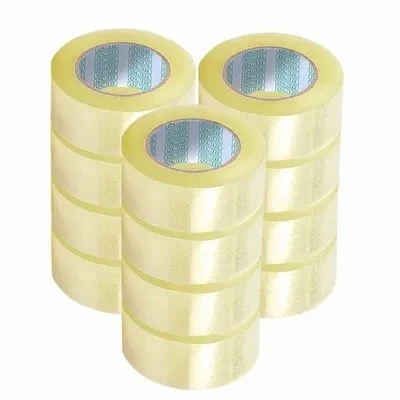

Finish Sample

Product Production Process

FAQ

Q: What is your term of payment?

A: We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

Q: What about the warranty?

A: All of our slitting machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 120usd / day / person as salary.In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine's full life service, buyer pay for the material cost of exchanging spare parts and repairing.
