Stack Flexo Printing Machine

Send Inquiry

Product Introduction

Machine name

Synchronous belt (Timing belt)Flexo Printing Machine

High Speed Belt Synchronous Flexographic Printing Machine uses photosensitive resin as flexible printing plate which is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, glass paper ,and roll paper etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc. The machine supports multi-colors printing, providing users with the flexibility to produce high-quality prints with various colors, meeting diverse printing needs.

Machine Characteristics

1. Reasonable structure, advanced technology, easy operation, stable performance, and accurate color register.
2. Adopting high-quality motors and high-quality inverters saves electricity, reduce the run fluctuation.
3. When the machine is stopped working, printing rolls still keep moving; when the printing roller,ink motor runs automatically; when fallen the printing roller, the ink motor stops running automatically.
4. The machine is equipped with a blower and heater, and the heater employed central temperature control system.
5. The use of an individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6. Roller adopts special steel processing and through special treatment, greatly reduces the beating range.
7. Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, and finally achieves a perfect printing effect.
8. The printing machine can choose advanced configurations to achieve the high quality, high-definition effect.

9.With ceramic anilox roller and semi-closed type doctor blade on each printing station.

10.Automatic tension controller and automatic web guiding system(EPC) for unwinding part.

Suitable Material:

Kraft paper:40-350g/㎡ single-sided coated paper：30-350g/㎡ copy paper：15-350g/㎡ firecrackers and paper：40-350g/㎡ paper money and incense：25-350g/㎡ silicone paper：50-350g/㎡ coated paper：30-350g/㎡ dust-free paper：25-350g/㎡Release paper：40-350g/㎡ composite paper：30-350g/㎡ woven：15-120g/㎡Weave fabric：15-500g/㎡ PVC:10-120g/㎡ OPP：10-120g/㎡ PE ：10-120g/㎡PET： 10-120g/㎡CPP：10-120g/㎡

Machine Technical Data

Model of Machine	YTC
Printing color	1-8colors
Width of Printing Material Roll	600mm/800mm/1000mm/1200mm
Width of Printing	560mm/760mm/960mm/1160mm
Max Printing Length	300-1000mm
Mechanical speed	10-150m/min
Printing Speed	10-120m/min
The thickness of plate	1.7mm or 2.28mm(can be customized according to client's demand)
Register precision	±0.2mm
Diameter of rewinder&unwinder	800mm
Suitable Ink	Water-based ink or Oil-based ink
Machine structure	Bridge +Stack type
Total Motor	50kw
Weight	6300kg
Overall Dimension	600024004000mm

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

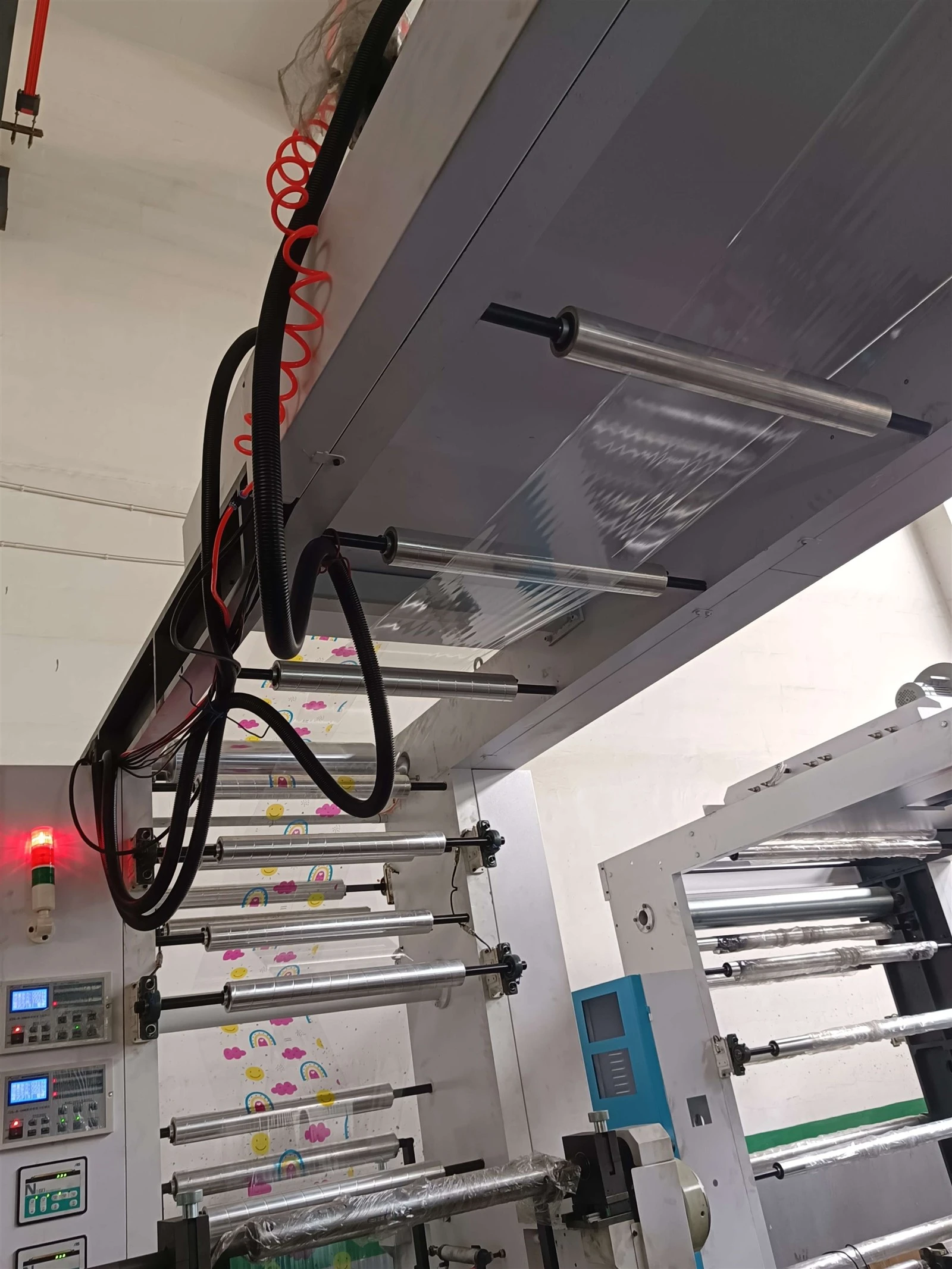

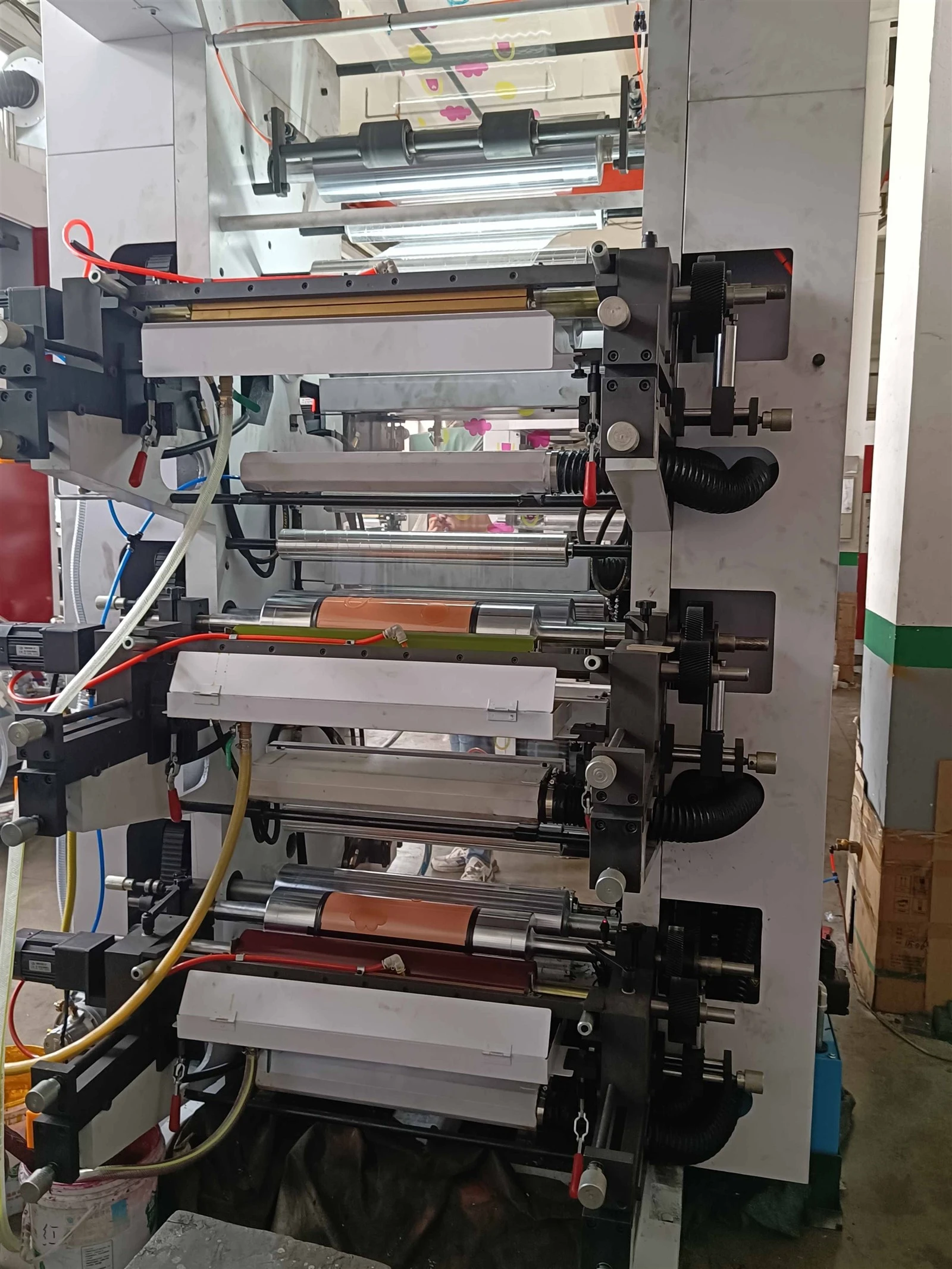

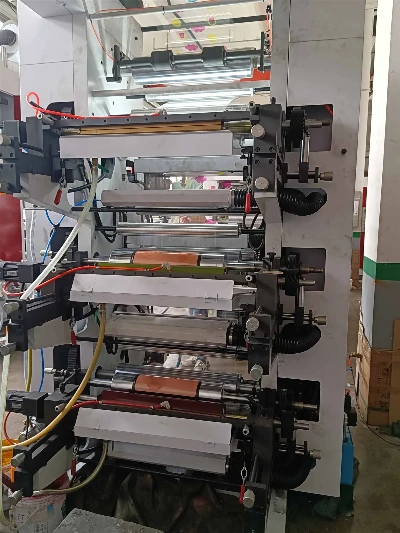

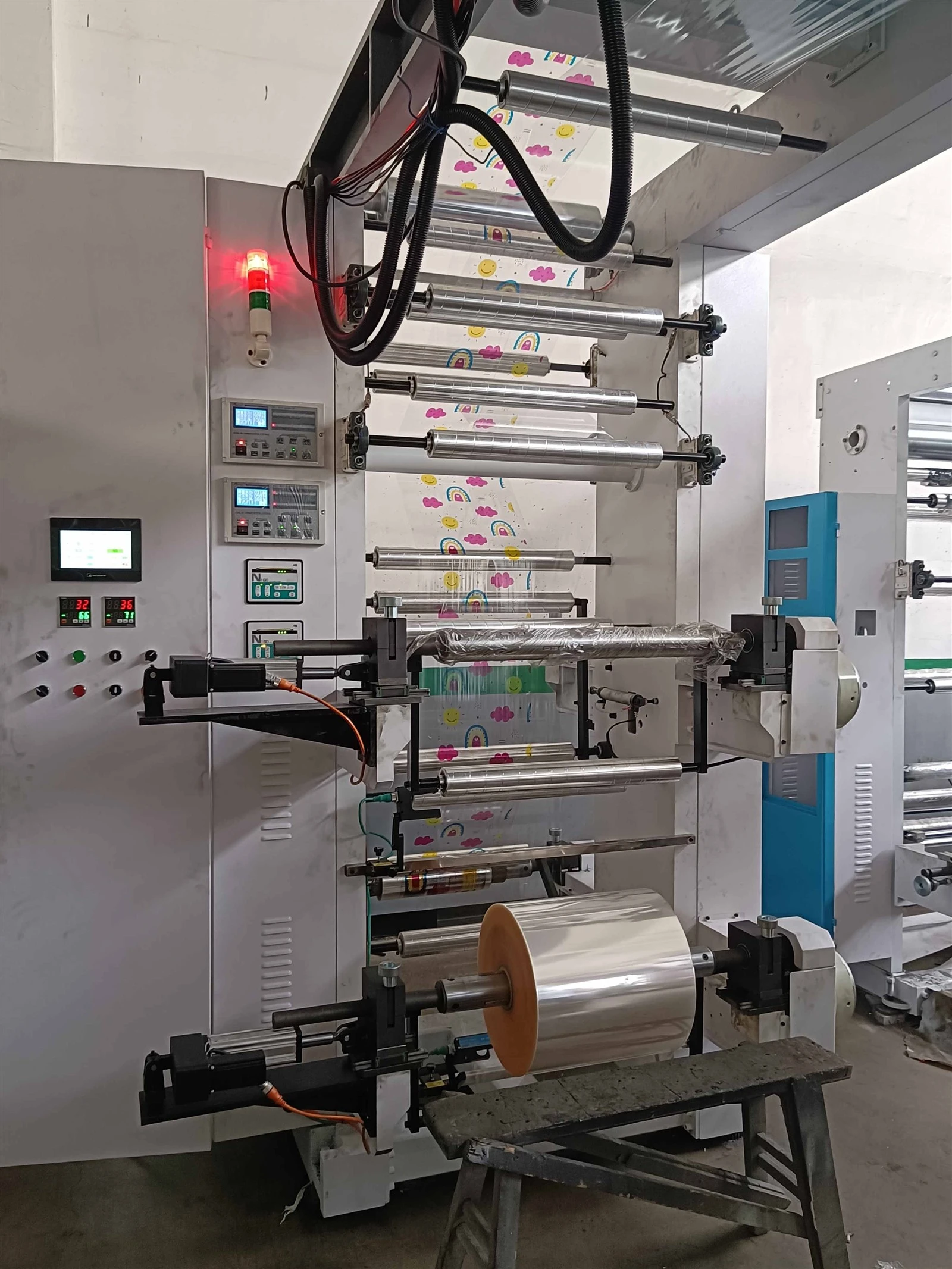

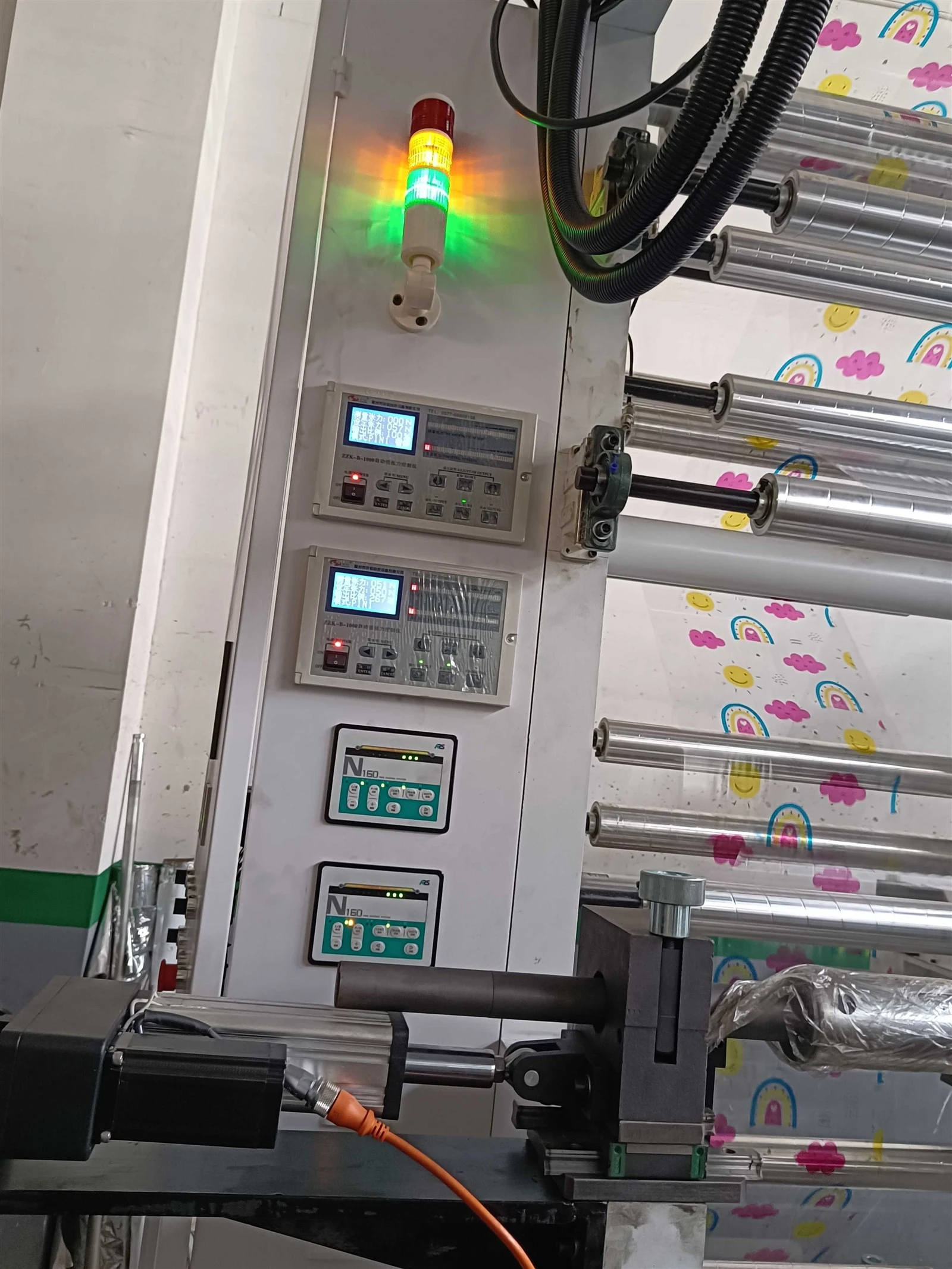

Machine Pictures

Product Production Process

FAQ

Q: What are the advantages of synchronous belt flexographic printing machines?

A:The traditional gear transmission has been replaced by synchronous belt transmission. This change has brought more precise color registration, smoother operation, easier operation, lower maintenance costs, stable operation, low noise, high efficiency and environmental friendliness

Q: What is the core principle of synchronous control for synchronous belt flexographic printing machines?

A: A main motor drives the pressure roll and anilox rolls of all color units via a synchronous belt or drive shaft, ensuring that their base speeds remain consistent and stable. At the same time, the printing plate cylinders of each color unit are driven individually by separate motors. This system uses electrical controls to ensure that the surface linear speed of each plate cylinder is perfectly synchronized with that of the impression cylinders and the substrate feed speed.

Q: How to maintain and inspect a synchronous belt flexographic printing machine??

A: Clean the anilox roller immediately after production is completed;
Clean the printing plate cylinder and pressure roll after production is completed;
Clean the ink tray after production is completed;
Check the ink doctor blade multiple times.
