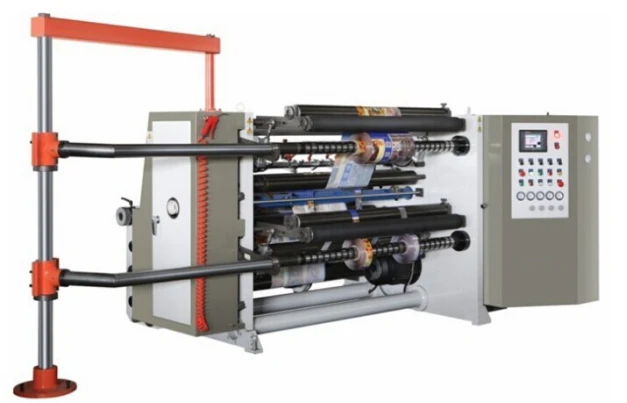

slip friction Shaft Slitting Machine

Send Inquiry

Product Introduction

Machine name

FQBW HIGH SPEED SLITTING MACHINE

The FQBW type 300m/min high speed slitting machine applies to slit jumbo roll,like cellophane, PET, OPP, CPP, PE, PVC,optical materials,printing of various materials. and all kinds rolls.

3491ba474976e76c22284ed7e2047c7

Machine Description

1, Unwinding is connecting with machine, adopts move type arm type and hang move type.

2, Unwinding use 3inch shaft type loading material.

3, Unwinding use 10kg powder brake ,NINGXI brand, PLC control.

4, Three motors are ABB brand

5, LPC use American techmach

6, Traction use pneumatic press roll traction system.use japan YASKAWA inverter.

7, Slitting use doctor blade and rotary blade. 10 sets

8, Exhaust system use 1.1kw high press fan

9, Rewinding use two friction shafts,tension controlled by PLC.

10, Rewinding use constant press roll.Use two japan YASKAWA inverters.

11, Rewinding friction pressure

12, Use Siemens PLC and weview man-machine interface.

13, Low voltage electronic parts use schneider.

14, Bear use NSK.

Machine Technical Data

Model	FQB-1300W	FQB-1600W	FQB-2000W
Max width of material	1300mm	1600mm	2000mm
Max diameter of unwinding	Φ600mm	Φ1300mm	Φ1000mm
Max diameter of rewinding	Φ500mm	Φ500mm	Φ600mm
Slitting width scope	30-1300mm	50-1600mm	50-2000mm
Machinery speed	400m/min	400m/min	400m/min
Slitting speed	350m/min	350m/min	300m/min
Rectify precision	±0.3mm	±0.3mm	±0.3mm
Total power	26kw	32kw	38kw
Overall demensions	380030001500mm	400045001600mm	450040001800mm
weight	4000kg	6000kg	5500kg

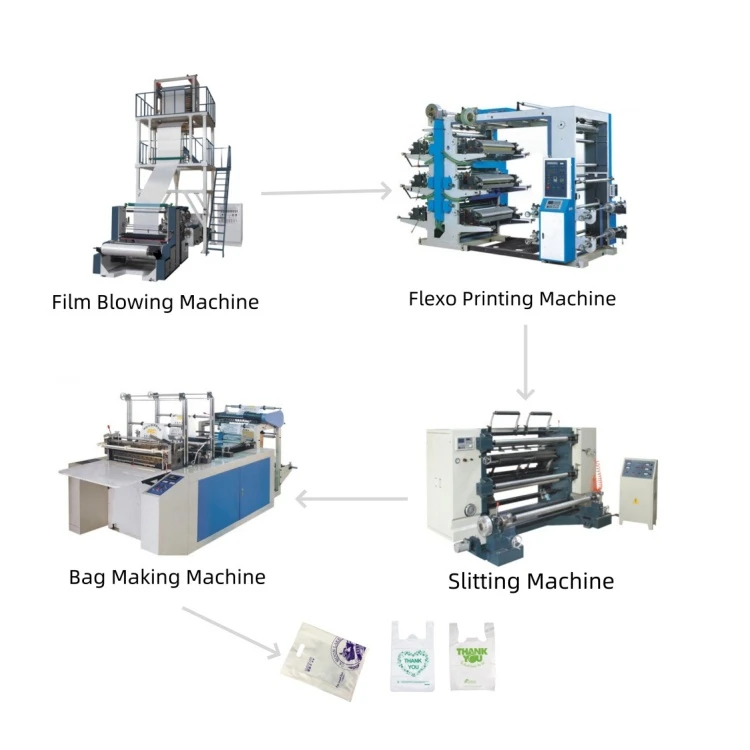

Product Production Process

b9a6cf239888f48a30fe94031275686

FAQ

Q: What is the response time for after-sales service if this slitting machine equipment malfunctions?

A: The warranty period for our slitting machine contract equipment is 12 months from the second day after debugging.

Q: How about the supply of spare parts? Is it easy to purchase?

A: The spare parts of the slitting machine are easy to purchase, and the transportation cost of replacement parts from the seller's factory to the buyer's country should be borne by the seller. The transportation cost of replacement parts from the buyer's country to the seller's country should be borne by the buyer.

Q:Are there any opportunities for visits machine or machine demonstrations?

A:If you want to visit the machines before shipping, welcome to visit factories in China.
