Product Introduction

Machine name

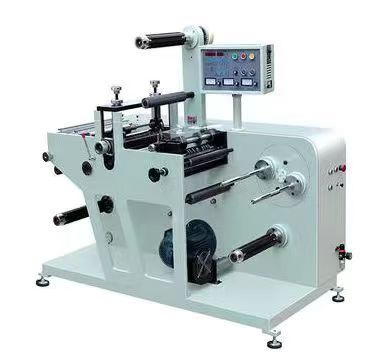

FQ-350Y/FQ-450Y Rotary Die Cutting Machine with slitting

This machine is suitable for die cutting and slitting for blank label ,and paper, adhesive labels, plastic film,ect.

product-373-362

Machine Description

1.FQ-350/450Y rotary die cutting and slitting machine adopt one group rotary die cutting station. This machine is suitable for blank label roll.
2.The machine with auto length count, auto stop when reach set length, web guiding(EPC), etc. function.
3. The machine has the advantage of high speed, high efficiency, accurate slitting, easy operation, and stable running.

Machine Technical Data

Model	FQ-350Y	FQ-450Y
Slitting speed	75m/min	75m/min
Die cutting speed	60m/min	60m/min
Die cutting girth	177-476mm	177-476mm
Max. width of roll	350mm	450mm
Max. diameter of unwinding roll	500mm	500mm
Max. diameter of Rewinding roll	480mm	480mm
Overall size	170011801530mm	170012801530mm
Weight	750KG	800KG
Main motor power	1.5KW	2KW

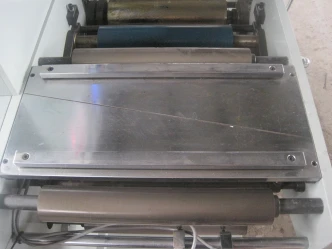

Machine Part

45bb96f71baa5a60dd11107cd3a7e64 product-230-172 a95183e222665cb801212430120b870 b434c6f14bca2abd0a2e214f43d4710 product-267-200 product-359-217

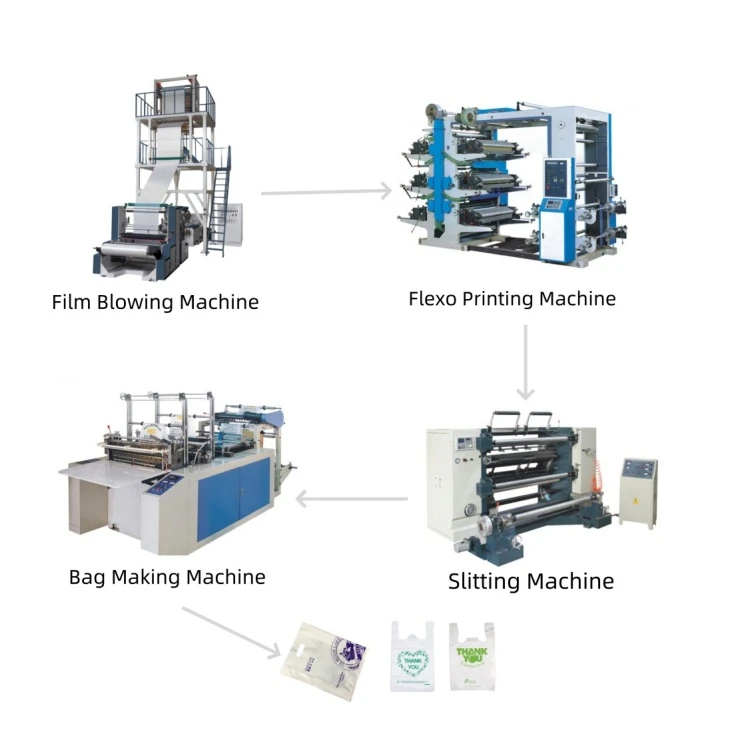

Product Production Process

1f6bc1fe82c530ebf979fe94663426a

FAQ

Q: What is the history of slitting mill?

A: The first slitting mill in England was built at Dartford, Kent in 1590. This was followed by one near Rugeley at the once separate village which was called Stonehouse, but now called Slitting Mill, by about 1611, and then Hyde Mill in Kinver in 1627. Others followed in various parts of England where iron was made.

Q: What are the types of cutting tools used in a slitting machine?

A: There are three types of cutting tools for slitting machines: round knives, straight knives, and steam knives.

Q: What material is used for slitting blades?

A: If running for short distances, the slitting machine uses stainless steel or carbon fiber slitting blades,In order to extend the running time and reduce maintenance related downtime, we will use higher quality blade materials.
