Product Introduction
Machine name



Label Paper Slitter Rewinder

This Label Paper Slitter Rewinder machine mainly serves the printing label stick after the label printing&die cutitng machine. The Label Paper Slitter Rewinder machine is compact insize, complete in structure, high speed,high efficiency, cutting accuracy, simple operation, stable operation, very user friendly andsimple opertion, it is one of small investment, but has very wide use for different material cutting.It can be used on paper, adhesive labels, etc.

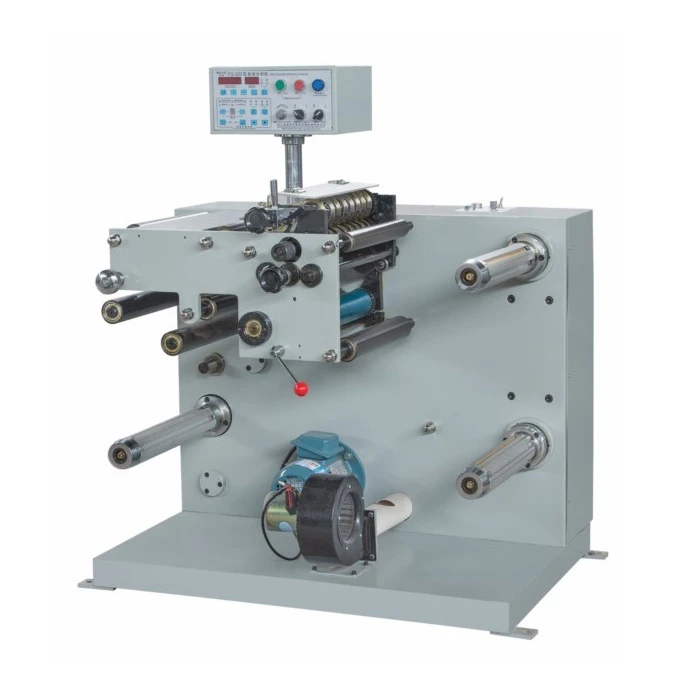

product-700-700



Machine Characteristics



This machine is a complete set of equipment for full automatic roll trademark printing machine and roll die cutting machine. It is applicable to slit the narrow scope paper, automatically count the length(meter), quantity of paper(piece) and set the length, automatically stopping, giving an alarm and unreeling, magic eye automatically correcting the error, inflatable shaft receiving material, tension controlling. Recording Paper number import electric eye, so it is of tight construction and is characterized by quickness, accurate slitting, ease of operation and stable, firm running.



Machine Description



FQ350/450 Label Paper Slitter Rewinder



Machine Technical Data



Model

FQ350

FQ450

Max web width

350mm

450mm

Max unwinding diameter

500mm

500mm

Max rewinding diameter

480mm

480mm

Min width

18mm

20mm

Cutting speed

80m/min

80m/min

Overrll dimensions(L*W*H)

1070*900*1320mm

1070*1250*1320mm

Machine Weight

500KGS

600KGS

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

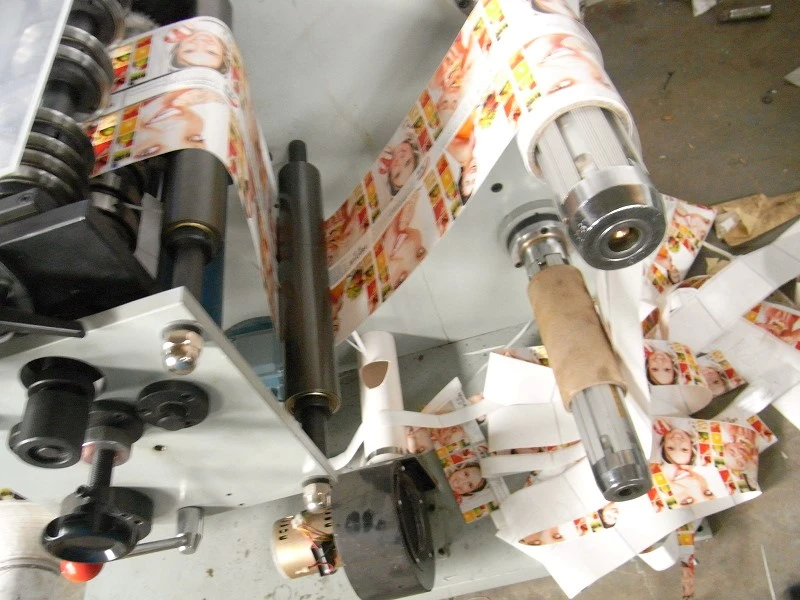

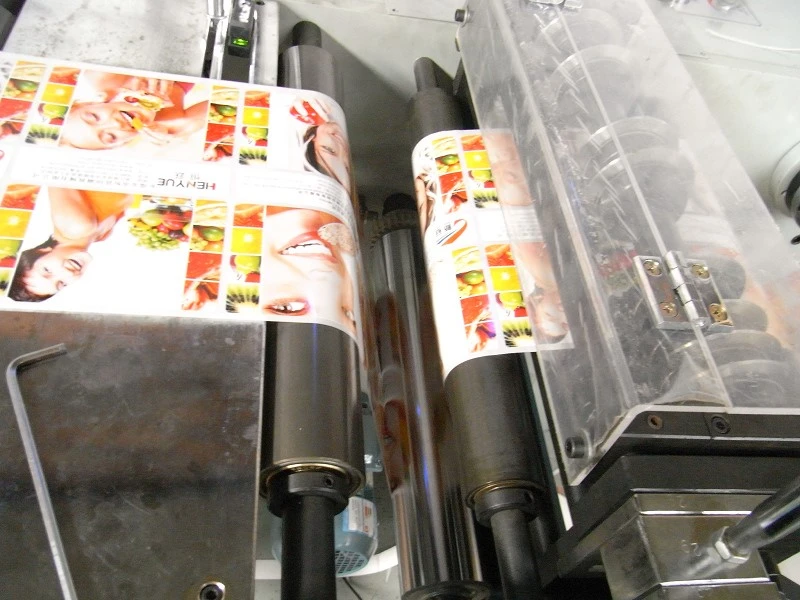

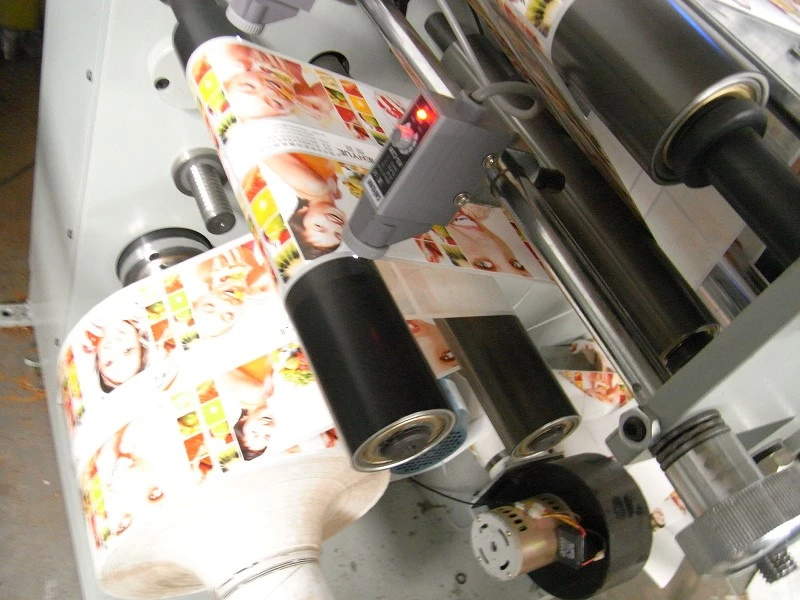

Machine Picture



product-800-600
product-800-600
product-800-600

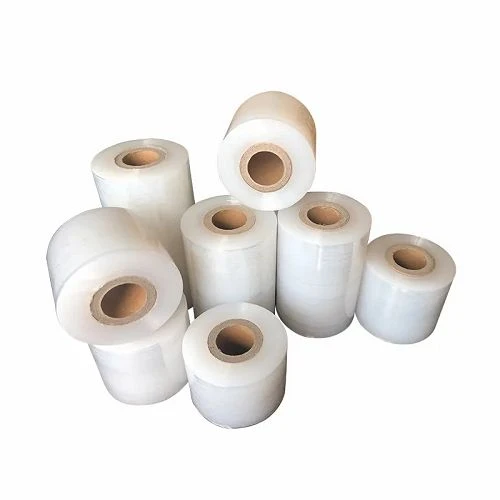

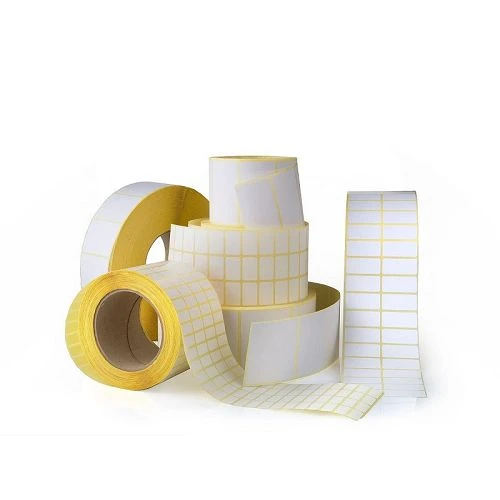

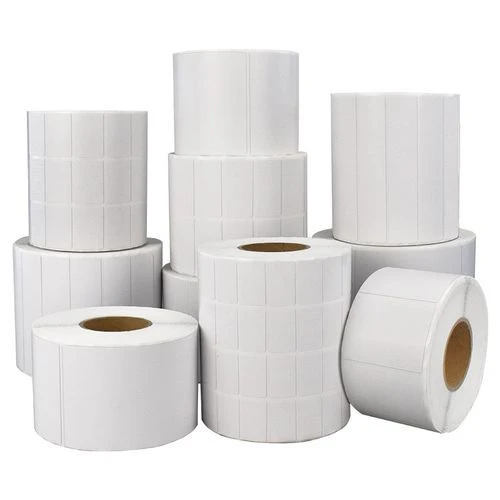

Finish Sample



product-500-500
product-500-500
product-500-500



Product Production Process



news-750-750



FAQ


Q:What is a slitter in manufacturing?

A:A slitting machine in production is a machine specifically designed to cut the mother roll or mother roll material into smaller widths for processing in the next step of the production process.

Q: How long is your delivery time?

A: The delivery time is 45days after we receive the deposit.
