Bag Making Machine
What is Bag Making Machine
Bag making machines, also known as rotary bag makers, are used for manufacturing plastics, or paper bags. A bag making machine is composed by a feeding/loading unit and a rotating molding head (with an upper and lower mold), which produces the bottom-sealed bags. The technology works on two main parts: the filling device and the sealing device. The filling device is responsible of loading the raw material inside the molding head while the sealing device completes the process by closing and sealing both the openings.
Advantages of Bag Making Machine
Multi-Functionality
Automatic machines being the most advanced equipment with the latest technologies, offer the ability to perform multiple functions simultaneously. One need not have different machines for each type of paper bag but can produce diverse paper bags on a single machine by changing the settings.
Saves Manpower
It is a known factor that machines outperform human labor. A machine can work quicker and better without taking any breaks in between. Thus, business owners prefer machines over manpower and can save a significant amount of money on labor expenses. Machinery needs an initial investment, but it is the optimal choice for the long run.
Increased Production
In the present and into the future, business owners are looking for machinery that can offer increased production to meet their committed schedules. No one needs a process that lags but needs an adept one that can produce the maximum number of products in a shorter period.
Finest Quality Bags
In contrast to traditional handmade paper bags, the ones produced with the help of automatic machines have the precision and quality most required. The quality of paper bags is of paramount importance as they get used in the packaging industry, and everyone needs strong and durable bags.
Why Choose US
Our Factory
Established 1999,name wenzhou jinghua machinery co.,ltd.exported machine to pakistan in 2007, exported machine to bangladesh 2008, exported machine to egypt 2009. and many other 50 coutries in these years.
Our Product
Dry laminating machine and other common machine. One is for customerized machine, such as foil printing machine, foil slitting machine, wax coating machine,PVC wall paper machine and so on.
QUALITY ASSURANCE
Two work-shop. One is for gravure printing machine, slitting machine,dry laminating machine and other common machine.
Our Service
We sincerely welcome friends from all over the world to cooperate with us on the basis of long-term mutual benefits.
Types of Bag Making Machine
Pouch Bag Making Machine
The Pouch Bag Making Machines represent a quintessential tool in the fabrication of a vast spectrum of bag types, with a particular emphasis on the production of three-dimensional pouches. These mechanisms are distinguished by their multifaceted capability to produce a diverse range of pouch bag styles, extending from elementary flat bags to the more intricate stand-up pouch configurations.
Garbage Bag Making Machine
The Garbage Bag Making Machine has been meticulously engineered to facilitate the production of robust and resilient garbage bags, integral to both domestic and commercial environments. These machines, crafted with precision engineering, embody complex mechanisms that include perforation, sealing, and cutting capabilities. They are proficient in manufacturing a broad spectrum of bag types, from conventional garbage bags to those enhanced with drawstrings, thereby augmenting user convenience and functional efficiency.

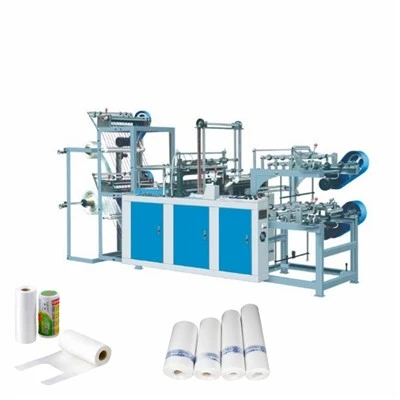

Bag on Roll Making Machine
The Bag on Roll Making Machine stands at the forefront of producing a myriad of disposable bags presented on a continuous roll, including, but not limited to, garbage bags, freshness-preserving bags, and an array of retail and shopping bags. This machinery excels in the continuous production of large quantities of bags, methodically winding them into rolls for efficient distribution and usage. It features a sophisticated, precision-engineered perforation system, ensuring that each bag can be effortlessly detached from the roll while maintaining its structural integrity. This functionality is particularly beneficial in high-throughput environments such as supermarkets or public facilities, where the swift and uninterrupted dispensation of bags is crucial.

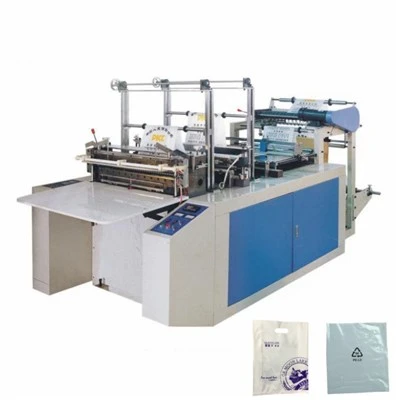

Bottom Seal Bag Making Machine
The Bottom Seal Bag Making Machine epitomizes a quintessential innovation in the realm of plastic bag manufacturing, excelling in the fabrication of bottom-sealed bags. It employs state-of-the-art heat-sealing technology, executing with precision the sealing of the bag’s bottom, while maintaining an unsealed top for user convenience. This apparatus is designed to seamlessly integrate into both small and large-scale production settings. Its robust architecture renders it exceptionally suitable for the production of heavy-duty bags, a critical feature in scenarios demanding high durability and extended bag longevity.
Diversity of Plastic Bag Making Machine
| Machine Type | Industries | Materials | Features | |||||
| Pouch Bag | Food, medical, cosmetics | PE, PET, laminates | Versatile pouch styles, optional printing, advanced sealing | |||||
| Garbage Bag | Cleaning services | HDPE, LDPE, recycled | Various styles, perforation and sealing, color customization | |||||

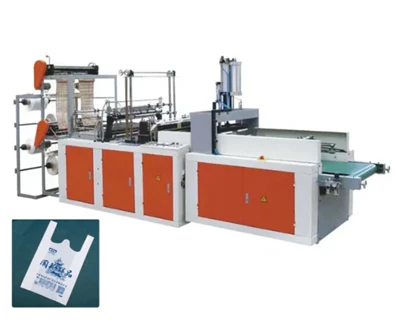

| T-Shirt Bag | Retail, supermarkets | HDPE, LDPE, biodegradable, recycled | Automated punching, strong seams/handles, size adjustment | |||||
| Bag on Roll | Supermarkets, public | HDPE, LDPE, recycled | Continuous roll production, adjustable sizes, perforation system | |||||
| Bottom Seal Bag | Industrial, commercial | Heavy plastics | Bottom-sealing, heat-sealing technology, size flexibility | |||||
| Side Seal Bag | E-commerce, postal, boutique | Thin, flexible films | Side-sealing, various materials, adjustable sizes/thickness | |||||

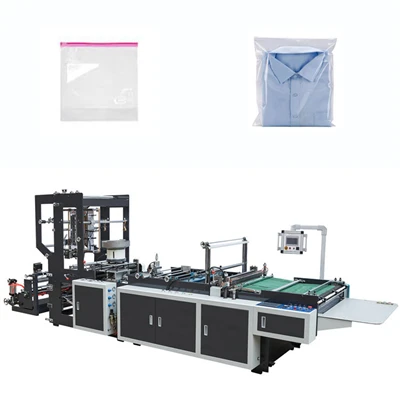

| Zipper Bag | Food, medical, consumer | Multiple layers, barrier films | Integrated zippers, various zipper types, resealable | |||||
| Air Bubble Bag | Fragile items, electronics | Bubble wrap, protective films | Dual-layered, shock absorption, customizable features |
How to Operate a Bag Making Machine
Unwinding Unit: This unit holds the fabric roll and feeds it into the machine.
Bag Formation Unit: This unit folds and seals the fabric into the desired bag shape.
Cutting Unit: This unit cuts the formed bag to the desired size.
Conveyor Belt: This belt transports the finished bags away from the machine.
Control Panel: This panel allows you to monitor and adjust machine parameters like temperature, speed, and pressure.
Depending on your machine's capabilities, additional components like handle attachment and printing units might be present.
Gearing Up for Production: Pre-Operational Steps
Machine Setup: Refer to your manufacturer's manual for instructions on setting up your specific machine. This typically involves assembling components, adjusting tension settings, and loading the fabric roll.
Material Selection: Choose a high-quality, fabric for your bag design and intended use. Consider factors like thickness, GSM, and colour while selecting the material.
Design and Size: Decide on the desired bag size and design. This includes specifying the bag dimensions, handle type (if required), and additional features like printing or gussets.
Bag Making Process: Step-by-Step Guide
Turn on the machine and ensure all settings are properly adjusted.
Feed the fabric roll into the unwinding unit.
Set the desired bag length and quantity on the control panel.
Start the machine and observe the bag formation process.
Ensure proper bag sealing, cutting, and handling (if applicable).
Monitor the production process and make adjustments as needed.
Collect the finished bags and neatly stack them for packaging or further processing.
Adjustment of the distance between the welding wire and the cutting line: The distance between the welding wire of the bag making machine and the cutting line is generally 5-10mm. Turn the hand wheel on the adjusting frame to make the beam roller rise or fall a certain distance to obtain the ideal cutting Tangent. In order to facilitate the observation of the quality of the welding wire, the position of the welding wire of the single bottom wire can be adjusted to the outer end of the machine cutter. If the welding line and the bottom line are not parallel, loosen the fixing screw of a bevel gear, turn the handwheel to raise or lower one end of the beam roller; after the production is stable, lock the screw of the gear again.
Welding knife adjustment method: Put a piece of thin paper on the support seat of the bag making machine, turn the big handwheel in the machine body box by hand to make the welding knife at the bottom dead center, loosen the nut and adjust the nut, and try it by hand. Pull the tightness of both ends of the tissue until it is approximately equal. After the adjustment, the nuts should be tightened to prevent loosening.
Automatic light-controlled feeding device: This bag making machine is composed of servo motor, feeding rubber roller, light-controlled shutters, shutters, photoelectric tracking machine, electrical control circuit, etc.
If the material is supported, the horizontal position deviation may occur for various reasons, such as uneven force, uneven thickness, roundness of the roller, etc., and an online anomaly detection should be performed in time.
At the beginning, the speed of the bag making machine was not high and the material deviation was manually adjusted by the operator according to actual on-site observation.
Because the light cabinet of the bag making machine benefits from simple construction, reliable performance, high precision, quick reaction, etc. has, the light cabinet is now used to track the dividing line of the different color ranges at the edge of the packaging material and read the actual and target position of the strip. After you have converted and amplified the offset into an electrical signal and compared, calculated and analyzed, Send an order to the servo controller to control the engine to drive the correction mechanism and return the strip to the set position to reach the output of the bag production machine The purpose of the automatic tracking adjustment.
What Auxiliary Parts Does the Bag Making Machine Need
Bag length regulator
The bag length is adjusted by changing the position of the pleural rod running on the eccentric slide to control the bag length. The bag size of the bag making machine is adjusted by the elastic handwheel and the mother mold.
Through-hole coupling
Zhongsu through-hole coupling is an important part of this machine. Its quality and performance have a direct impact on the length defects of the product, but due to the high working frequency, its service life is limited. If the bag length error is found during the production process of the bag making machine (generally after half a year of continuous production), and the bag making machine failure cannot be corrected after the bag making machine is stopped, the coupling can be disassembled for inspection and maintenance.
Application of Bag Making Machine
Food packaging enterprise
Bag Making Machine performs a critical position inside the food packaging industry. Its green production potential and super bag making best make it a great desire for producing meals packaging luggage. Whether it is biscuits, chocolates or bread, this device can quickly and accurately produce packaging bags that meet hygienic requirements.
Pharmaceutical industry
In the pharmaceutical enterprise, Bag Making Machine is extensively used in production pharmaceutical packaging luggage. It can offer a exceptionally sealed bag mouth to make certain the safety and hygiene of drugs all through transportation and storage. In addition, the gadget also can adapt to exceptional specifications and necessities to fulfill the desires of the pharmaceutical industry for numerous packaging.
Daily necessities packaging
The packaging of every day requirements including toiletries and cosmetics generally calls for the bag mouth to be flat and company. The Bag Making Machine excels in those areas and may satisfy clients who require excessive packaging aesthetics and texture.
Industrial applications
In addition to consumer items packaging, the device also unearths programs inside the commercial quarter. For instance, used for packaging commercial elements, hardware merchandise, etc. Its rapid bag making velocity and high manufacturing performance make it an critical device in the industrial area to improve packaging efficiency.
How to Choose Bag Making Machine
When deciding on a Bag Making Machine device for a selected utility, there are numerous elements to recall to make certain manufacturing performance and product first-class. Here are some key factors that may need to be considered:
Determine the kind of bags you want to produce, consisting of flat bags, ziplock baggage, or other particularly fashioned luggage. Consider the bag size range to ensure the machine can accommodate your manufacturing requirements.
Different substances may additionally require specific warmness sealing parameters, so it's far vital to recollect whether or not the system can adapt to distinct types of packaging substances, together with polyethylene, polypropylene, etc.
Consider the speed wishes of your manufacturing line and pick machines which could meet or exceed anticipated throughput. This can be finished through knowing the maximum production velocity and adjustment capabilities of the system.
Increased automation can lessen guide intervention and enhance manufacturing performance. Consider whether you need computerized feeding, computerized size adjustment, automated detection and different features.
Choose machines that are easy to function and preserve to reduce the threat of breakdowns at some point of manufacturing and decrease downtime.
Make positive the machine's heat sealing generation can meet your necessities for heat seal electricity and accuracy, particularly for unique shapes or programs that require higher warmness seal great.
Consider the purchase value, working price and preservation fee of the gadget. Choose a gadget this is price-powerful and has low lengthy-time period working costs.
If production wishes are anticipated to boom within the future, recollect whether or not the gadget is scalable and might easily accommodate expansion of the production line.
When deciding on a warm-heat backside seal bag making device, thinking about those factors will let you discover the first-class gadget in your unique software.
How to Maintain Bag Making Machine
Check electric connections regularly
Regularly checking the electric connections of your Bag Making Machine system is a essential step in making sure right operation of the system. Make certain all cables and connections are tight and not free or frayed, and update broken cables at any time to save you electric failure.
Clean electric components
Maintaining a easy Bag Making Machine device electric gadget is important to stopping dust, dirt, and different contaminants from affecting electric additives. Regularly use compressed air or a smooth brush to easy switches, relays and contactors to make certain easy transmission of electrical alerts.
Calibrate sensors and controllers regularly
Bag Making Machine machines are normally prepared with numerous sensors and controllers to monitor and alter the production manner. These devices are frequently calibrated to ensure their accuracy and balance to improve the fine and consistency of bag manufacturing.
Check the temperature of electrical additives
Detect ability issues by using observing temperature modifications in electrical additives. Overheating may also imply a faulty or overloaded electrical component, and troubleshooting the hassle directly can save you device damage.
Testing of emergency forestall buttons and protection switches
To make certain set off shutdown in the event of an emergency, regularly check emergency stop buttons and protection switches. This enables reduce the danger of injuries and protects operators and gadget.
Back up electrical device parameters
Before performing preservation, it is encouraged to back up the electrical gadget parameters of the Bag Making Machine machine. This allows quickly repair equipment to its unique settings after protection, decreasing downtime in production.
