PE Stretch Film Slitting Machine

Send Inquiry

Product Introduction

Machine name

JZF-L600 PE stretch film slitting machine

The JZF-L600 PE stretch film slitting machine adopt duplex type(back to back type) for slitting small size roll materials, like PE fresh-reserving film,PE stretch film,PVC stretch film,PVC shrink film,opp,pp,cpp,pet and other film materials.

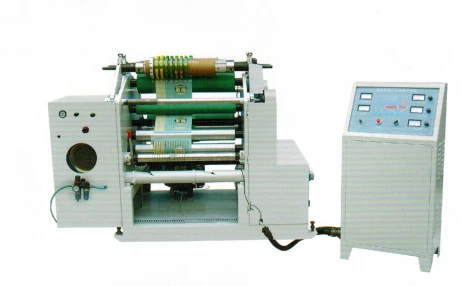

2b7ed812ba9271a56df0bf561fa2df5

Machine Description

This machine equipped with auto photoelectric edge correction, preset meter,auto stop when reach preset meter, main motor inverter adjust speed, unwinding use magnetic powder tension controller ,reasonable compact structure, steady running condiation,easy to operate

Products Description

Model	JZF-L600
Max material width	600mm
Max unwinding diameter	φ600mm
Max rewinding diameter	φ400mm
Inner diameter of rewinding	φ25mm, φ76mm
Min slitting width	5mm(doctor blade)
Slitting speed	0-160m/min
Total power	4kw
Overall dimensions	1200x1600x1100

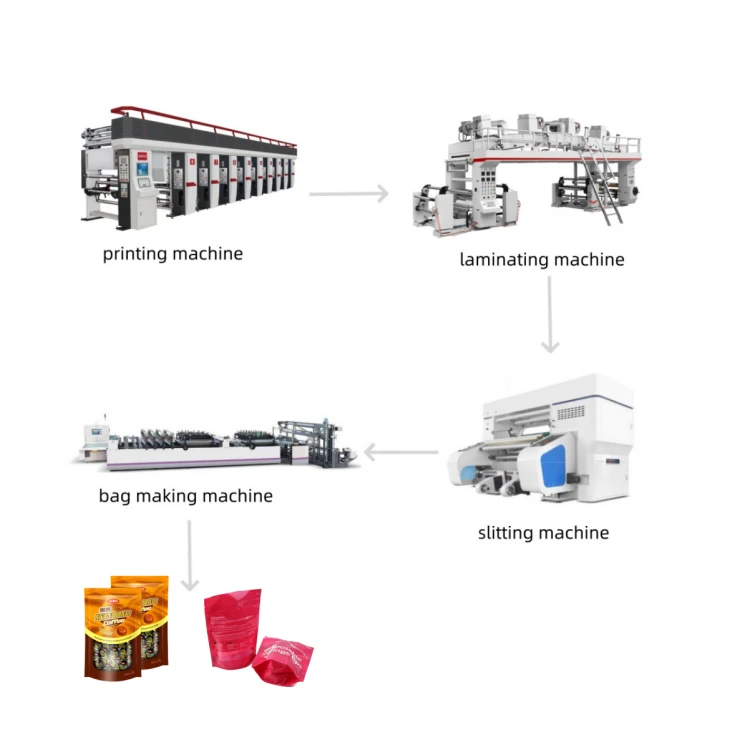

Product Production Process

af7df486b1e597c3f9f9c27bd49207c

FAQ

Q: What should I do if there is uneven cutting on the slitting machine?

A:First, you need to check if the tool installation is correct, and then make precise adjustments.

Q: What are the key factors in choosing a slitting machine?

A: We need to consider several aspects when choosing a slitting machine, including material type, cutting accuracy, production efficiency, automation level, and budget.

Q: What is the reason for uneven cutting and burrs during the operation of the slitting machine?

A:If this reason occurs on the slitting machine, it may be due to tool wear.
