Thermal Paper Slitter Rewinder

Send Inquiry

Product Introduction

Machine name

This thermal paper slitter rewinder machine is used for slitting and rewinding all kinds of thermal paper rolls, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, etc.

product-483-463

Machine Characteristics

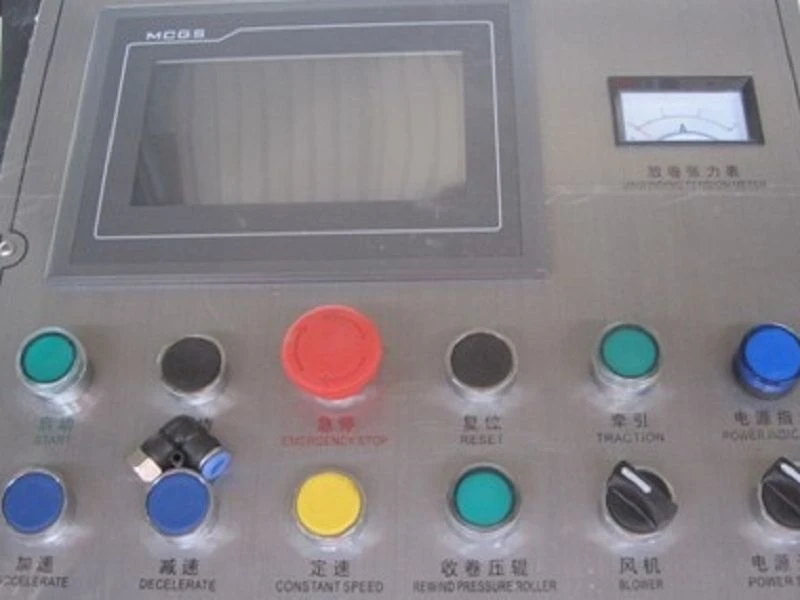

1. The machine equips PLC +touch screen control, automatic tension control, automatic product separation, automatic counting, automatic pneumatic loading system, which makes it easy to operate by only one worker.
2. Automatic feeding and correct errors for unwinding, automatic blowing rim charge conveying device.
3. The thermal paper roll machine features are high speed and stability, high precision, and long working life. The defective rate is only 3‰.It brings much more profit to clients than before. It is the most ideal slitting machine for small size paper roll production.

Machine Description

FW550/900 Thermal Paper Slitter

Machine Technical Data

Type	FW900
Max. width of mother	900mm
Max. diameter of mother roll	1000mm
Diameter of final roll	250mm
Width of final roll	20-900mm
Paper core of rewinding	1inch,2inch,3inch
Slitting speed	150m/min
Tolerance of EPC	±0.3mm
Motor power	3kw

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

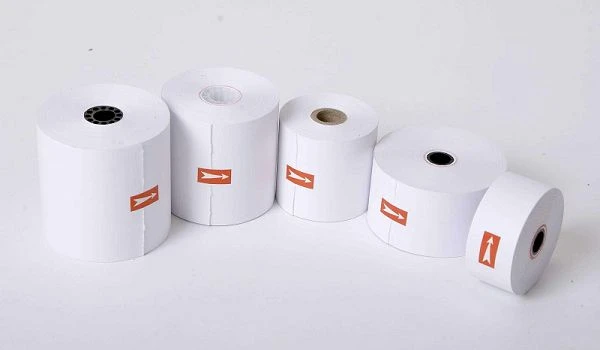

Finish Sample

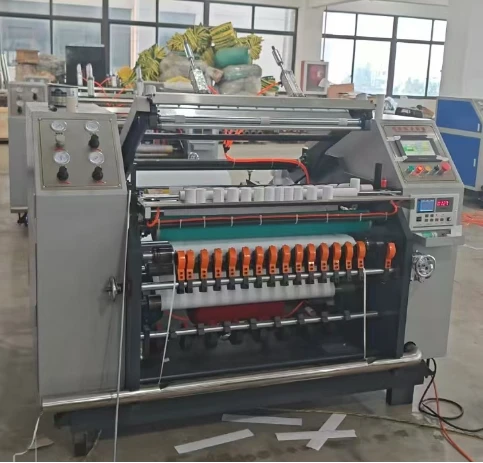

Machine picture

Configuration

Description	Origin
Main motor	Lichao, Shanghai
Speed inverter	Panasonic, Japan
PLC	Inovance, Shenzhen
Touch screen	WEINVIEW
Module	Inovance, Shenzhen
Meter counting	Autonics, Korea
Switch power	Mingwei, Taiwan
Low voltage electric appliance	CHINT, Wenzhou
Unwinding magnetic powder (20kg)	Ruian
Web guiding eye	Guangzhou
Button	Schneider, France
Synchronous motor	Suzhou
Fan	Ruian

Product Production Process

FAQ

Q:What is slitting in food production?
A:It is the process of slitting a large roll of material into narrower rolls. This operation is completed using professional longitudinal cutting equipment, which has a series of different longitudinal cutting methods, namely shearing, shaving, and extrusion longitudinal cutting.

Q: What is the function of slitting machine in textile?

A: Its function is to minimize material waste during the slitting process, optimize the slitting process, and reduce the width of edges or edges, thereby improving the yield and utilization of fabrics
