Turret type Label Slitting Machine

Send Inquiry

Product Introduction

Machine name

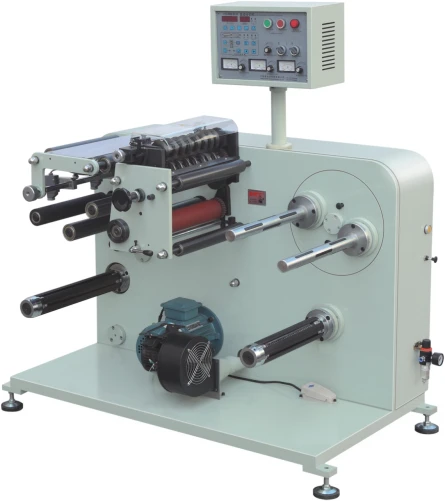

FQA-350 label slitting and rewinding machine

product-445-501

Machine Description

1.The FQA-350/FQA-450 label slitting and rewinding machine suitable for slit label roll,paper roll or film roll. It is applicable to slit the narrow scope material.
2.The machine function have automatic counting the length(meter), quantity of paper(piece) and setting the length, automatic stopping, giving an alarm and unreeling, Photoelectric eye rectify, air shaft and turret type rewind material, tension controlling.
3.Adopt import electric eye recording paper number .
4.The machine with tight construction and characterized by quickness, accurate slitting ease of operation and stable running.
5.The turret type rewinder can change different diameter of air shaft,like 1inch,1.5inch ,2inch and 3inch to meet different size of roll.

Machine Technical Data

Model	FQA-350	FQA-450
Max web width	350mm	450mm
Max unwinding diameter	500mm	500mm
Max rewinding diameter	480mm	480mm
Min width	18mm	20mm
Cutting speed	80m/min	80m/min
Overrll dimensions(LWH)	10709001320mm	107012501320mm

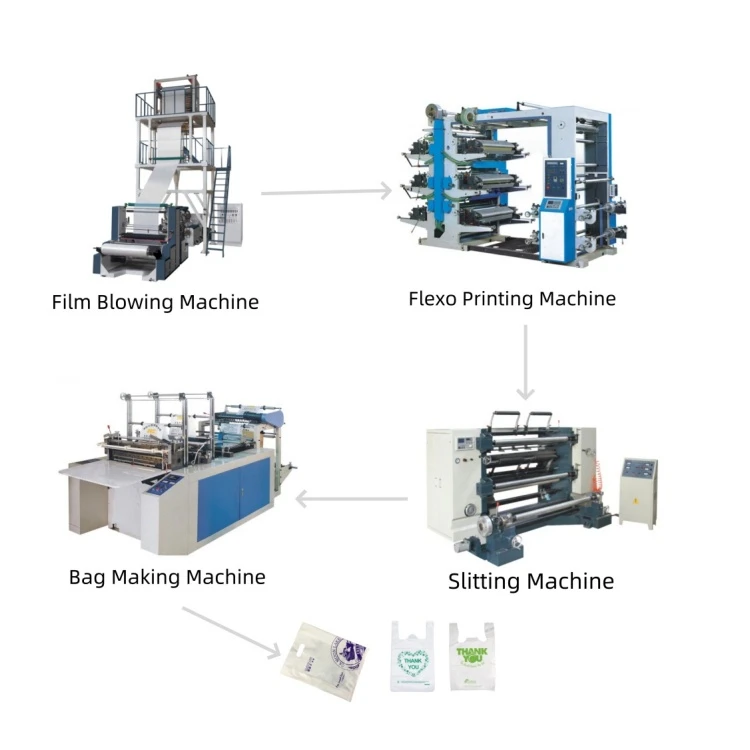

Product Production Process

b9a6cf239888f48a30fe94031275686

FAQ

Q: What are the maintenance and upkeep methods for the slitting machine?

A: The maintenance method of the slitting machine is to regularly clean, lubricate, and inspect all components for normal operation, follow operating procedures, and replace worn parts in a timely manner. This is a routine maintenance method for the slitting machine.

Q: What is the working principle of a slitting machine?

A: Splitting machines usually use cutting tools or pulleys to cut raw materials, and can be adjusted and controlled to a certain size as needed.

Q: How to choose a cutting machine that suits your needs?

A: When selecting a slitting machine, it is necessary to consider the type, thickness, width of the raw materials, as well as the required processing accuracy, as well as factors such as production volume and automation level.
