jumbo sticker slitting machine
Products Name
High Speed Film And Adhesive Lable Slitting and Rewinding Machine

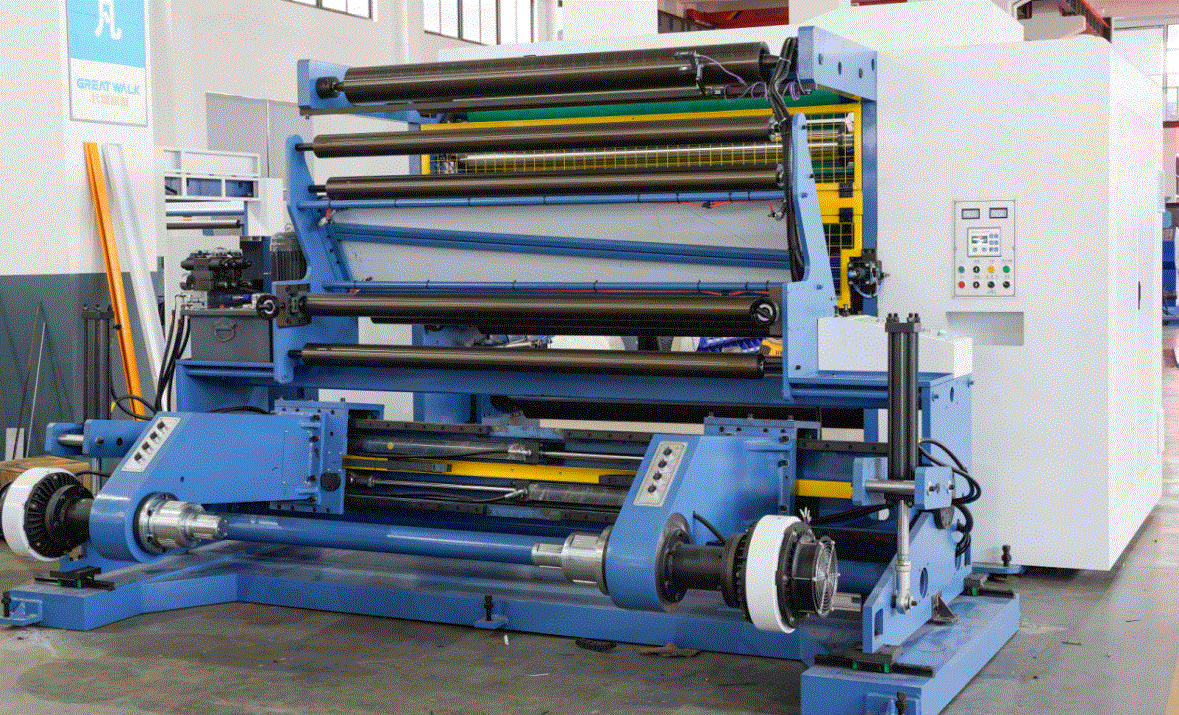

GWL-1700 is suitable for slitting and rewinding for large roll materials, especially for laminated paper, extruded paper,adhesive label paper and plastic film.
Machine viedo
Fuction
1.This machine adopts five servo motors control, automatic tension control, central surface rewinding, the rewinding surface smooth and tight.
2.The machine adopts frequency converter speed regulation to keep the operation smooth during acceleration.
3.With the function of automatic meter counting, alarm stop.
4.The rewinding use two friction airshaft ,auto unloading tower, easy to operate.
5.Automatic rectifying device,useEL CCD ,automatically adjust the unwinding position.
6.Adopts imported Italy Delsarlame air knife for slitting, automatic fan to do exhaust material.
7.unwinding part adopts separated shaftelss structure.
8.Automatic discharge device in rewinding.
Main technology parameter and configuration
| Model | GWL1700 |
|
Max. width of the unwinding |
1700mm |
|
Min. slitting width |
50mm |
|
Max diameter of unwinding |
1400mm |
|
Max. diameter of rewinding |
800mm |
|
Max. weight of unwinding |
2600KG |
|
Slitting speed |
10-600m/min |
|
Slitting thickness/ speed |
50-300gsm adhesive paper :10-500m/min 30-400gsm paper :10-600m/min 12-300 micron plastic film:10-500m/min |
|
Slitting material |
printed and blank paper Printed Plastic film and blank plastic film |
|
Rewinding method |
Center loading |
|
Slitting precision |
±0.2mm |
|
Speed control |
Frequency inverter control |
|
The input power |
380V |
The Unwinding device
|
Unwinding structure |
Hydraulic shaftless feeding (3"/ 6") |
|
Lifting method |
Hydraulic cylinder control |
|
Unwinding tension control |
Servo motor 7.5kw*2 Siemens Servo motors |
|
Scope of guide rail |
75mm (left and right) |
|
Slitting device |
Air knife (Italy Delsarlame) |
|
Amount of air knife |
6 sets |
|
Adjustment method |
Manually |
|
Waste edge exhaust device |
Suction fan |
Controlling system
|
PLC |
SIEMENS |
|
Touch screen |
SIEMENS |
|
Solenoid valve |
AIRTAC |
|
Pneumatic proportional valve |
SMC |
|
Low voltage electrical appliances |
SCHNEIDER |
|
Automatic adjustment |
EL CCD deviation correction |
|
Correction accuracy |
±0.2mm |
|
Rectifying sensor |
Photoelectric sensor |
|
Automatic tension control |
PAUSOURCE(Taiwan) |
|
Counting meter |
Fully automatic |
Drive system
|
Main motor |
SIEMENS 7.5 kw*1 |
|
Rewinding motor |
SIEMENS 7.5kw *2 |
|
The inverter |
YASKAWA *5 |
|
Feed roller |
rubber roller |
|
Driving roll |
Aluminum roll |
|
The transmission type |
Synchronous belt drive |
|
Compression type |
Cylinder pressure |
|
Rewinding shaft |
3 inch friction shaft |
|
Bear |
NSK & HAERBIN |
|
Automatic unloading of device for finished products： 1 SET |
|
