High Speed Slitting Machine
Machine name
High Speed Slitting Machine
GW-1300Z 350m/min high speed slitting machine applies to slit cellophane, PET, OPP, CPP, PE, PVC,paper ,printing of various materials (Food packaging bags, gift packaging bags, toy packaging bags, etc.)and other roll type material. film roll, foil roll, all kinds of paper rolls, film and printing of various materials .etc, such as : Food packaging bags, gift packaging bags, toy packaging bags, etc.
Machine Characteristics
1. The machine adopts electronic computers, PLC centralized control and controls the tension, meter count, rectify and so on ,according to different slitting technologies.
2. The machine has the functions of stable tension, start and buffer, stop and loose proof, fixed slitting, the operation is easy.
3. The rewinding roller and drawing roller adopts frequency motor.
4. The tension of the unwinding and rewinding can be adjusted flexibly, much more convenient for the slitting of different types of paper or film roll. The unwinder adopts pneumatic type auto loading material,the rewinder adopts air shaft to ensure fast loading and unloading fast.
Machine Description
GW-1300Z High Speed Slitting Machine
Machine Technical Data
|
Model |
GW-1300Z |
|
Material thickness range |
0.012-0.15mm |
|
Slitting width |
0-1300mm |
|
Unwinding diameter |
800mm (max.) |
|
Rewinding diameter |
450mm (max.) |
|
Slitting speed |
350m/min(max.) |
|
EPC accuracy |
±0.15mm |
|
Total power |
≈30kw |
|
Power supply voltage |
AC380V, three phase,50HZ |
|
Equipment dimension |
2745*1550*1950mm |
|
Equipment weight |
about 3500kg |
Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Finish Sample

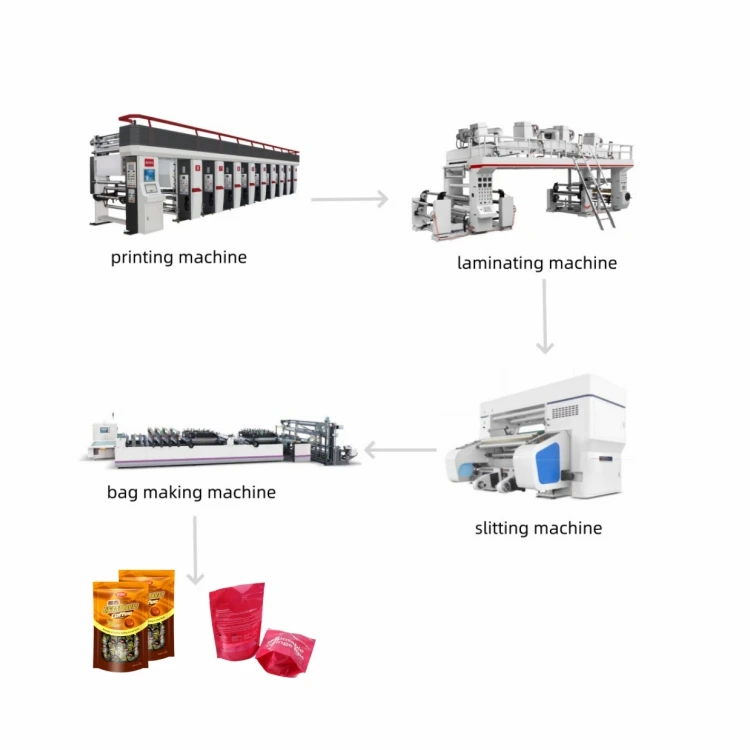

Product Production Process
