inline flexo printing machine

Send Inquiry

Product Introduction

Machine description

The petal flexo printing machine is suitable for eco-friendly packaging, such as the paper bag used for the food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton, and medicine use. Thin paper, Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials etc.

Each printing unit of petal type flexo printing machine is independent and arranged horizontally in a straight line. High printing accuracy, good accessibility, flexible operation, and short preparation time before printing, all these characteristic make our petal type flexo printing machine a higher performance- price ratio than other domestic petal type machine factories in China.

machine Characteristic

1. Excellent petal structure, plate loading, ceramic anilox roller, and plate roller quick change, saving the operator's plate change time;
2. The unit printing machine has an ultra-short distance from discharging to receiving;
3. High-precision unique clutch pressing method, the pressing position of plate roller and anilox roller is in place at one time, ensuring high precision and high efficiency;
4. Standard infrared drying system(IR drying system) to avoid ink drying is easy to cause scratches and dirt;
5. Printing pressure: The thickness of the printing material is the same, the printing plate rollers of different repeat lengths are replaced, and the printing pressure does not need to be adjusted again;
6. From 1-12 colors can be customized according to clients needs;

7.The independently developed special scraper compensates for high-speed flying ink and reducesthe amount of solvent in the air volatilization in;

8.Printing material: Reel type material(roll type material).

Products video

Products Description

Machine Technical data

Model	HRY
Printing Color	1-12color(can be customized according to client's demand)
Suitable Material	Paper
Machine Width	650mm/850mm/1000mm/1200mm
Printing Width	620mm/820mm/970mm/1130mm
Machine Speed	200m/min
Printing Speed	10m/min－150m/min(depend on material)
Printing Length(printing circumference)	300-1000mm
Thickness of printing plate	1.7mm (can be customized according to client's demand)
Diameter of unwinding and rewinding	1200mm
Temperature of heat oven	10-100℃
Drying mode	Hot Air Drying/IR Drying/UV LED Drying
Ink used	Water-based Ink and UV ink
Diameter of paper core	3Inch
Thickness of Self Adhesive	0.38mm or 0.5mm

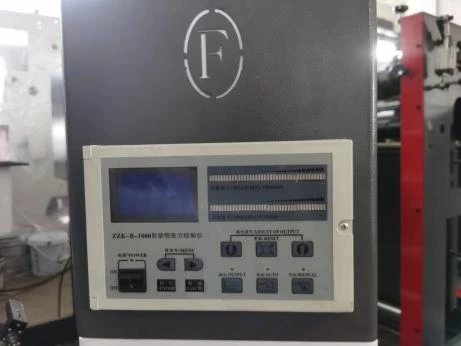

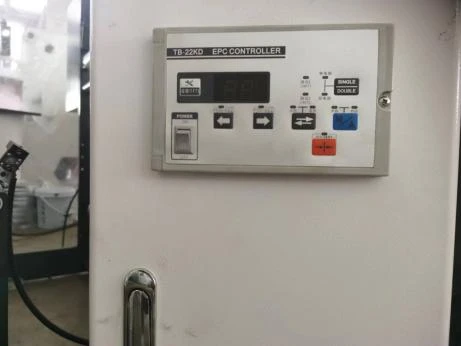

machine Pictures

FAQ

Q: What's machine structure of petal flexo printing machine?

A: The printing units are independently arranged along the horizontal direction, allowing for flexible addition or reduction of printing unit according to demand (typically 4-10 colors). This open layout easy to operation and maintenance, with each printing unit can adjust pressure, temperature, and drying parameters independently.

Q: What are the precautions for using a petal flexographic printing machine?

A: 1. The initial gap between the plate cylinder, impression cylinder, and anilox roller must be confirmed
2. Printing plates of different thicknesses must be paired with double-sided adhesive of corresponding thicknesses
3. For suitable pressure, follow the principle of "prefer light over heavy"

Q: In which countries is the petal flexographic printing machine popular?

A: North America, Europe, and Asia, represented by China, are its primary core markets, while emerging markets such as Southeast Asia and India also demonstrate strong growth potential
