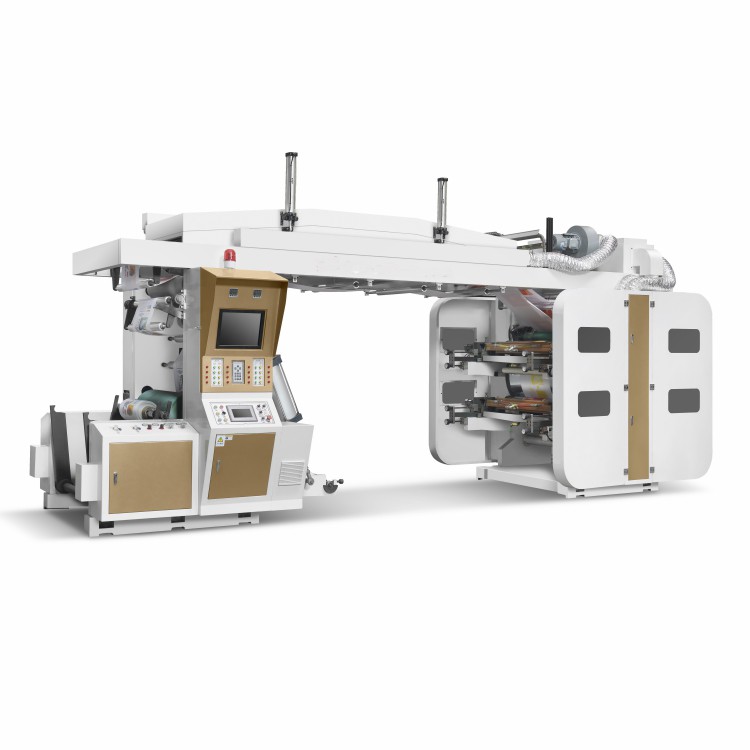

Ci Printing Machine

This is FOCO printer. The Ci Printing Machine is hot wind dryer, automatic temperature controller, and separated heat source.And the Central impression for better color registration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color The Ci Printing Machine is suitable for printing such packing materials as it is a kind of ideal printing equipment for producing paper,non woven ,plastic film BOPP/PVC/PET/OPP/PVC etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Send Inquiry

Product Introduction

Machine name

CI Type Flexo printing machine

The Ci Printing Machine is suitable for printing such packing materials as it is a kind of ideal printing equipment for producing paper,non woven ,plastic film BOPP/PVC/PET/OPP/PVC etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Machine Characteristics

1.Method: Central impression for better color registration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials.
2.Structure: Wherever possible, parts are communized for availability and wear-resisting design.
3.Doctor blade: open type assembly for high-speed printing.
5.Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed on both control chassis and body for operations convenience.
6.Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch, with PLC control tension stability.
Gearing of Printing cylinder: repeat length is 5MM

Machine Technical Data

Type	YTC4600	YTC61000	YTC61200
Printng color	4colors	6colors	6colors
Max machine speed	220m/min	220m/min	220m/min
Max. printing speed	200 m/min	200 m/min	200 m/min
Max. material width	620mm	1020mm	1220mm
Max. material diameter	1000mm (auto loading unwinding system)	1000mm (auto loading unwinding system)	1000mm (auto loading unwinding system)
Max. rewind width	620mm	1020mm	1020mm
Max. rewind diameter	1000mm (back to back rewinding system)	1000mm (back to back rewinding system)	1000mm (back to back rewinding system)
Max. printing width	560mm	960mm	1160mm
Printing length	300-800mm (can be customized according to user)	300-800mm (can be customized according to user)	300-800mm (can be customized according to user)
Repeat length	5mm (Each increase/decrease 1 tooth, the repeat length increase/decrease 5 mm)	5mm (Each increase/decrease 1 tooth, the repeat length increase/decrease 5 mm)	5mm (Each increase/decrease 1 tooth, the repeat length increase/decrease 5 mm)
Plate Matching Way	Crosswise: ±10mm Lengthwise: ±7.5mm, electromotion ration for quick place the plate (no stop machine) on line	Crosswise: ±10mm Lengthwise: ±7.5mm, electromotion ration for quick place the plate (no stop machine) on line	Crosswise: ±10mm Lengthwise: ±7.5mm, electromotion ration for quick place the plate (no stop machine) on line
Total machine power	35KW	50KW	60KW
Total machine weight	About 6T	About 10T	About 11T
Machine overall dimensions	6.8m(L)×2m(W)×2.6m(H)	7m(L)×2.8m(W)×3.3m(H)	7m(L)×3.0m(W)×3.3m(H)
Printing way	Full width 4color on one side	Full width 6 color on one side	Full width 6 color on one side
Printing plate thickness	Photopolymer plate 1.7mm (can be customized according to user)	Photopolymer plate 1.7mm (can be customized according to user)	Photopolymer plate 1.7mm (can be customized according to user)
Printing cylinder install in machine	400mm (at client's require)	400mm (at client's require)	400mm (at client's require)
Ceramic anilox roller	4 pcs(LPI at client's require)	6 pcs(LPI at client's require)	6 pcs(LPI at client's require)

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Machine part

Product Production Process

FAQ

Q: What is the difference between digital and flexo?

A: The difference between digital printing and flexographic printing lies in different printing methods, applicable ranges, costs, and printing quality.

Q: What is the difference between flexographic printing and gravure printing?

A:Flexographic printing is cheaper, easier to operate, can be used with various inks, and assembled faster. Gravure printing is more suitable for large-scale printing operations, without the need to replace the printing plate, providing more image details and a longer service life.

Q: What is the largest market for flexographic printing?

A: The largest markets for flexographic printing are Eastern Europe, Western Europe, and South America.
