Label Flexo Printer With Die Cutting
machine Description

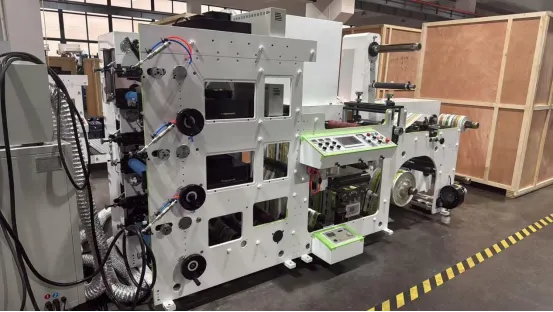

machine structuer
Printing Structure:
Unwinding: Paper change unit with a maximum unwinding diameter of 600 mm, equipped with a 3-inch diameter paper core. Includes an electronic web guiding system (automatic web guiding control) capable of automatically correcting paper position, and a paper splicing table.
Printing:
5 independent servo-driven flexographic color units, featuring ceramic anilox rolls connected with helical gears, plate cylinders, and high-precision impression cylinders.
Drying System:
1 set of UV drying system, with separate configurations for each printing unit
Adjustable power output; can be controlled independently with switches
Die-Cutting :
The die-cutting station employs a round-to-round configuration with a servo drive. The magnetic die roller and backing roller can be interchanged vertically to perform die-cutting on both sides. It can also be used for sheet-fed operation, working in conjunction with a conveyor table to stack products neatly. Die-cutting and waste removal are both controlled by magnetic powder.
Rewinding:
The rewinding system features servo drives and PLC-controlled closed-loop tension control, ensuring stable rewinding tension and high-speed operational precision.
The rewinding core uses a 3-inch diameter, ensuring synchronization between rewinding speed and printing.
machine technical data
| Model |
RY320-3 |
|
Max web width |
320mm |
|
Max printing width |
310mm |
|
Max. printing length |
180.975～444.5mm |
|
Max unwind diameter |
600mm |
|
Max rewind diameter |
600mm |
|
Overprint precision |
±0.1mm |
|
Max.Printing speed |
100m/min |
|
Thickness of printing plate |
1.7mm |
|
Thickness of adhesive tape |
0.38mm |
|
Suitable material |
30-300gsm paper |
|
Gear Specifications |
1/8cp |
|
Air pressure |
100PSI(0.6Mpa) |
|
Voltage |
380V/220V |
|
Tension control |
10-100KG |
|
Tension control precision |
±0.5kg |

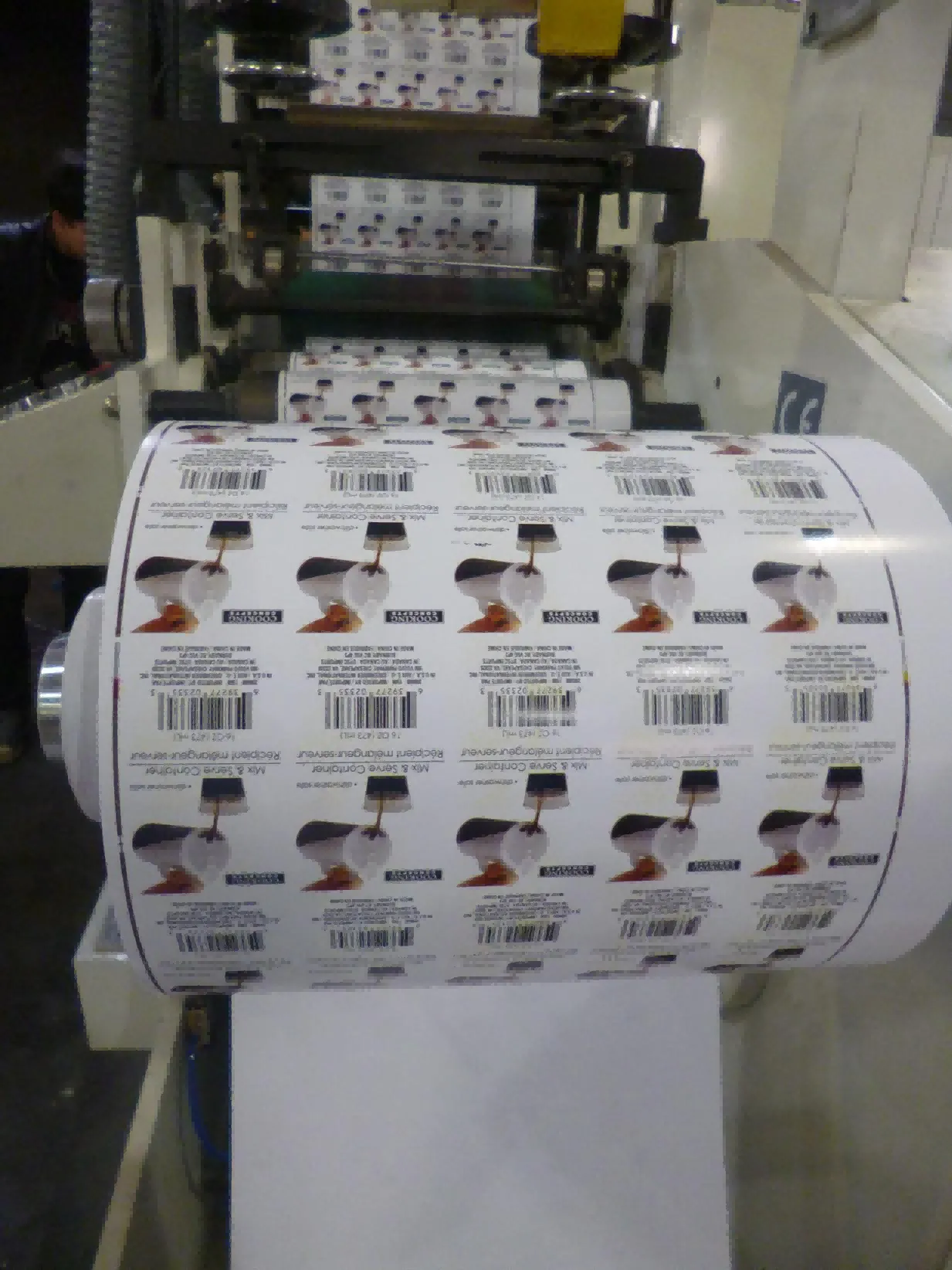

finished sample
FAQ
FAQ
Q: What is flexographic label printing?
A: Flexographic printing is a popular method for printing large orders of custom labels at rapid speeds by transferring ink onto the paper or film material using flexible printing plates mounted on fast-rotating cylinders.
Q: What is an example of flexo printing?
A: A classic example of flexo printing is the packaging of everyday consumer goods, such as a plastic potato chip bag, a cereal box, or a product barcode label. Flexography (or flexo) is a high-speed printing method that uses flexible relief plates to transfer ink onto a wide variety of materials, from paper and cardboard to plastic and metallic
Q: What ink is used in flexo printing?
A: Flexo printing ink is a fluid, fast-drying ink specifically engineered for the flexographic printing process. It is most commonly used for high-speed, roll-to-roll printing of packaging materials, including corrugated cardboard, flexible food films, and pressure-sensitive labels.
