Shrink Sleeve Cutting Machine

Send Inquiry

Product Introduction

Machine name

Automatic Shrink Sleeve Film Cutting Machine

This machine is suitable to cut PVC SLEEVE,printed film, PE film,and plastic tube bag,also can add bottom sealing_,this machine work speed is very fast,position is very exactly.have photocell tracting system,computer control.can add line dottted,irregular shape to open,bottom sealing etc function according to client requirement.

product-750-750

Machine Characteristics

1.Whole machine computer control

2.Equipped with EPC device

3.Automatically count the cutting length and warning when it reach to the set length.

4.It can extra add function like horizontal perforation,vertical perforation, conveyor, air shaft with magnetic powder brake

Machine Description

QD-300 Microcomputer Control High-speed Automatic cutting Machine

Machine Technical Data

Model	QD300
Max useful width	300mm
Working capacity	100-480pcs/min
scope of cutting length	0-999mm
Position accuracy	±0.2mm
Power	AC 50Hz/220v
Total power	1.5kw
Overall dimensions	2580x1050x1250mm
Weight	500kg

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Finish Sample

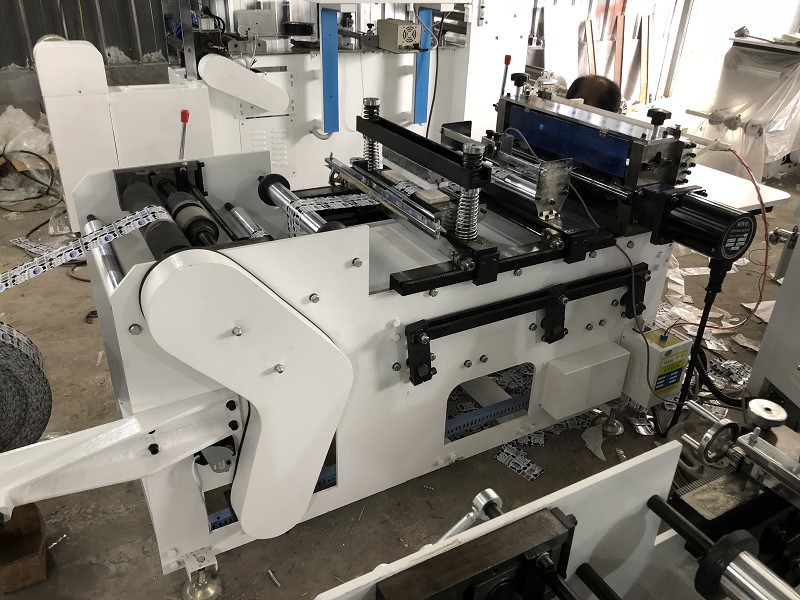

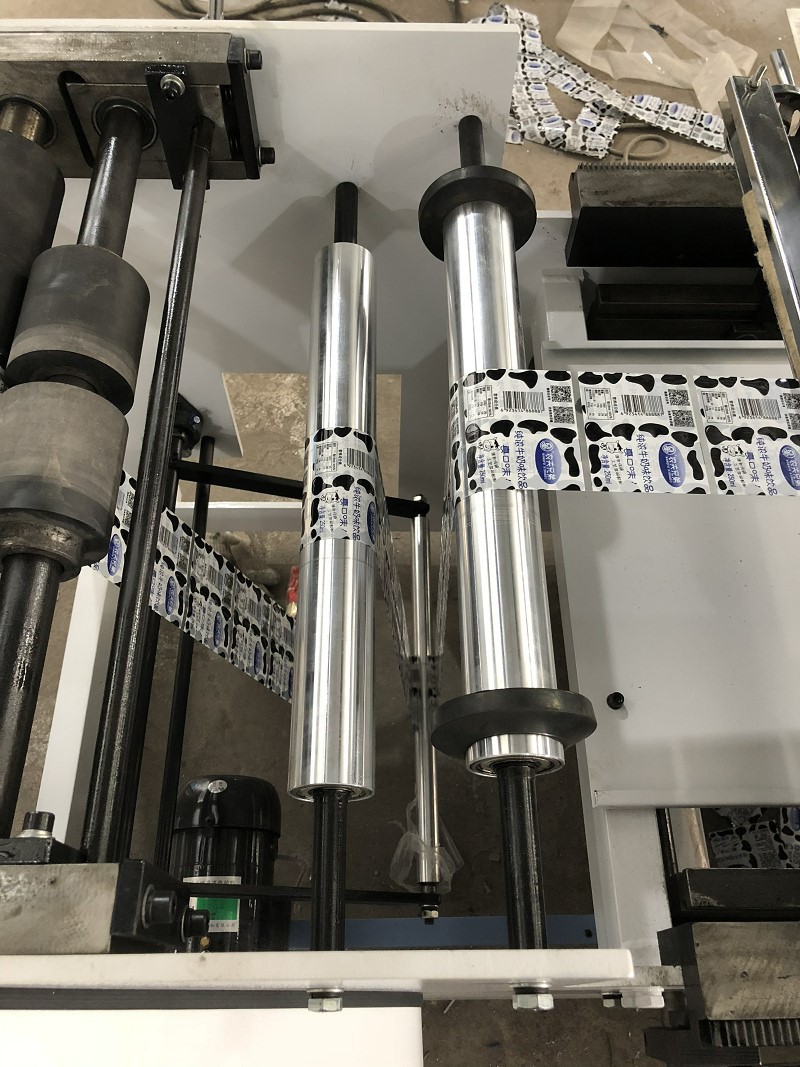

Machine Picture

Product Production Process

FAQ

Q:What are the raw materials in plastic bags?

A: Plastic bags are made from polyethylene, which begins as ethylene extracted from natural gas or oil. It is specially treated to become a polymer. Polyethylene is changed to fit how it will be used and the different types of bags to be produced.

Q: What are the maintenance methods for bag making machines?

A: Regular Cleaning 2.Lubrication3.Inspection of Wear Parts4.Calibration5.Tightening and Alignment: 6.Electrical Components:7.Operator Training8.Record Keeping

Q: What types of bags can a bag making machine produce?

A: Flat pockets, vest bags, T-shirt bag,self-sealing bags, composite bags, three-dimensional bags, zipper bags, roll up bags, and more.
