Plastic Film Folding Machine

Send Inquiry

Product Introduction

Machine name

Plastic Film Folding Machine

This machine used to fold plastic film such as OPP, CPP, PP,PE,POF before making bag.This film folding machine is used for folding the single-layer sheet PP OPP film and then rewinding, which is an assistant equipment of the bag sealing and cutting machine for making garment bag, sock bag, towel bag, bread bag, ornament bag, underwear bag, stationary bag, electric element bag, bamboo article and wooden products bag etc. plastic packing bags.

product-470-354

Machine Characteristics

Functions:

1.Film Folder

2.Bottom gusseting

3.Feed adhesive tape facility

4. Insert white tape film facility

5. EPC

6. Magnetic powder braking unwinding and Magnetic powder clutching rewinding

Machine Description

DZV Plastic Film Folding Machine

Machine Technical Data

Specification	DZV1200	DZV1400	DZV1600	DZV1800	DZV2000	DZV2200	DZV2400
Max rewinding width(mm)	600	700	800	900	1000	1100	1200
Max unwinding width(mm)	1200	1400	1600	1800	2000	2200	2400
Max rewinding speed(m/min)	60	60	60	60	55	45	35
General power(kw)	2	2	2.5	2.75	3	3.5	4
Weight of whole machine(kg)	400	450	500	550	650	750	850

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

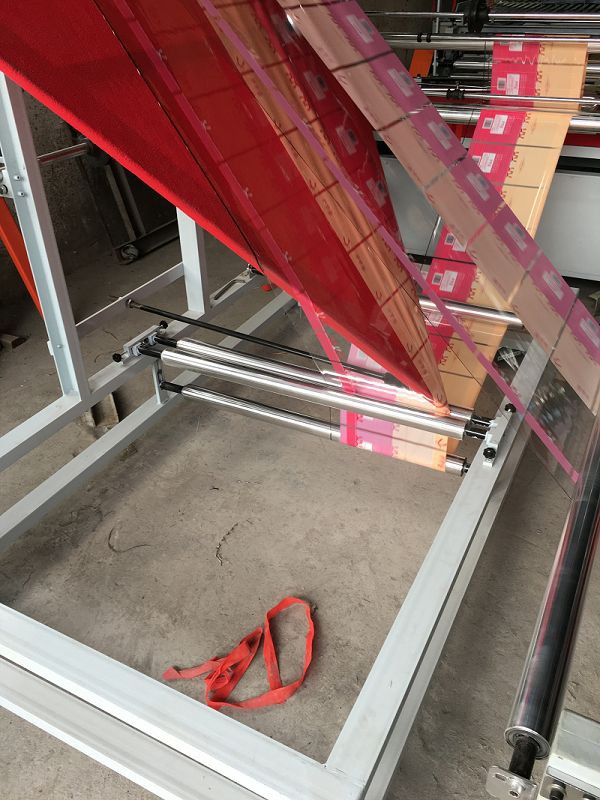

Machine Picture

Product Production Process

FAQ

Q: What is the reason for inaccurate or uneven folding of plastic film folding machines?

A: The inaccurate or uneven folding of plastic film folding machines may be caused by worn folding blades, too fast folding speed, unstable tension, etc

Q: What is the reason for the blockage or paper jam in the plastic film folding machine?

A: The blockage or paper jam of the plastic film folding machine is caused by high paper humidity, uneven paper thickness, and debris inside the machine.

Q: What is the reason for uneven or uneven paper accumulation in plastic film folding machines?

A: The uneven or uneven accumulation of paper in the plastic film folding machine is due to incorrect paper feeding method, malfunction of paper stacking device, etc.
