Stand -up and Zipper Bag Making Machine

Send Inquiry

Product Introduction

Machine name

Stand -up And Zipper Bag Making Machine

This machine is suitable for laminated film of three-side(standing bag,embossing bag),stand-up bag, zipper bag machine to produce successively.easy to operate,acctually position,reliable quanlity.

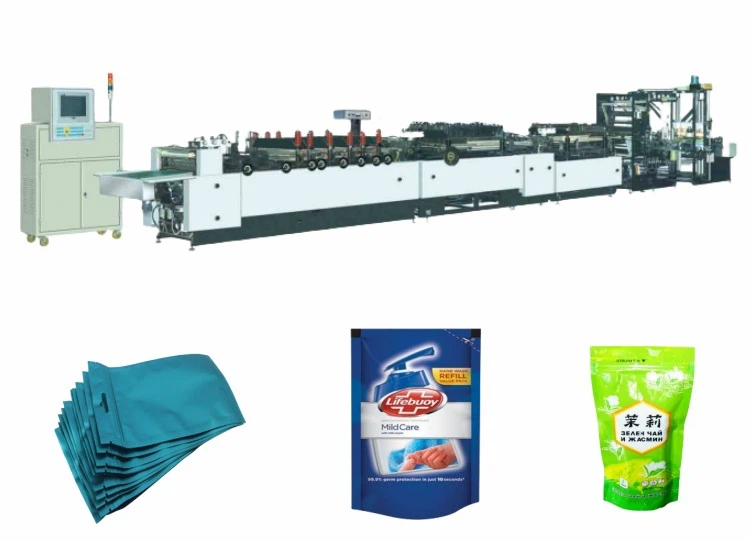

product-750-541

Machine Characteristics

1. Whole machine controlled by central PLC control system.with man-machine interface more stable performance,easy for operation and maintenance.lanugage can use english and chinese.

2. Constant auto-tension control for unwinding,LPC edge alignment AC inverter constant speed auto material feeding

3. Japan two servo motor material dragging system.

4. Main motor for up-down sealing and pressing equipped with inverter

5. PID for sealing bar temperature adjustment,no touch auto control,centralized setting in man-machine interface

6. Heavy type pressure,let bag more clean

7. Pneumatic multi-function auto punching device,trim cutting and auto-rewinding.have static eliminator

8. Temprature adjust range:0-300C

9. Counter:quantity,batch accumulation,per-set avaliable

10. Operation method: by length fixation countrol and/or by photocell tracking

11.Punching device: working rhythm can pre-set as continuours,interval or stop,punching time can be pre-set

12.Material skip feeding: one to six times available

13.Batch converying function avaliable,the quantity of batch can be pre-set

Machine Description

TBD-TB-C Stand -up And Zipper Bag Making Machine

Machine Technical Data

Model	FBD500TB-C	FBD600TB-C
Width of making bags	500mm	600mm
Main material width	500mm (can do times sending)	600mm (can do times sending)
Accessorial material width	120mm	120mm
Speed of making bags	160pcs/min	160pcs/min
Machinery speed	45m/min	45m/min
diameter of unwinding	600mm	600mm
Overall dimension(mm)	12500x2400x1870	12500x2500x1870
total power	50kw	60kw
Weight	6500kg	7000kg

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

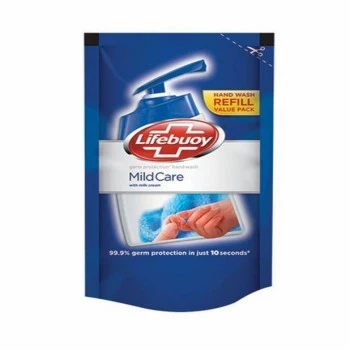

Finish Sample

Product Production Process

FAQ

Q: What is a bag making machine?

A: Bag making machine is a type of equipment used in industry for mass production of shopping bags. It has a wide range of uses and can use various plastic materials to make bags..

Q: What machinery is used to make plastic bags?

A: The production of plastic bags involves various machines and complex process flows, such as film blowing machines, printing machines, bag making machine and so on.

Q: What is Stand-up Zipper Bag Making Machine?

A:The Stand up Zipper Bag Making Machine is a device specifically designed for producing three-dimensional bags with zippers. This type of bag is commonly used for packaging various products such as food, cosmetics, and household items, and is widely used due to its convenient sealing design.
