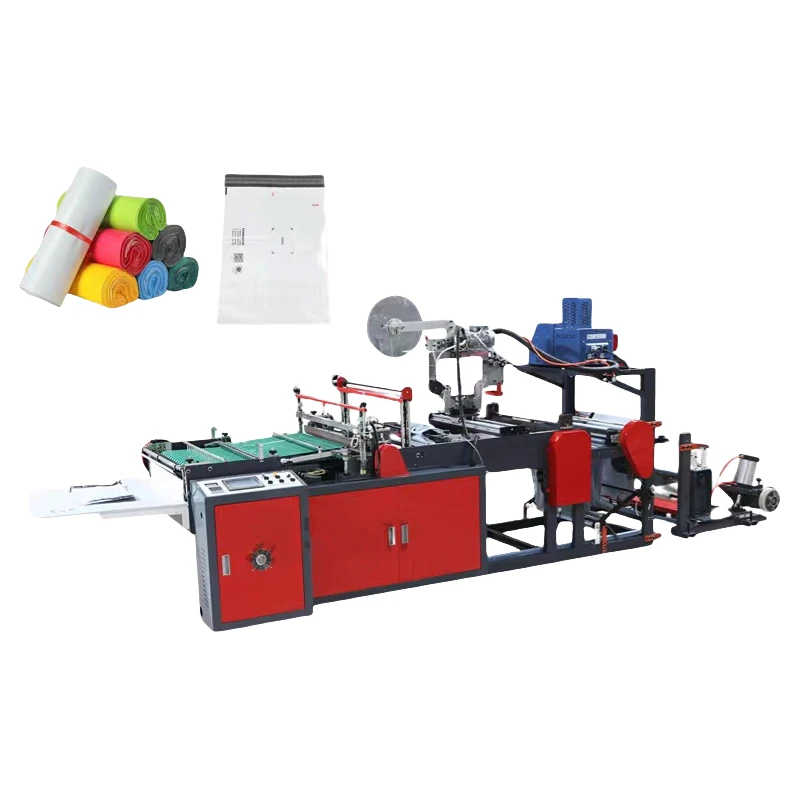

Plastic Courier Bag Making Machine

Send Inquiry

Product Introduction

Machine name

Plastic Courier Bag Making Machine
Fully Automatic Courier Bag Making Machine Is Specialized In Producing Courier Express Plastic Mailing Bag , Such As SF, Sto, Jingdong, DHL, UPS And So On.This Machine Easy Operation, Servo Motor ,Inverter,And PLC Control,With Touch Screen Displays Parameter.

45d5248e712380232484a0239fc7822

Machine Characteristics

Processed The Material:
BOPP. PP. PE. Shrinkable film. etc.

The Function and Characteristic:
1.PLC touch screen control the full machine
2.Auto stop if material runs out
3.Servo motor control film feeding
4.Length-making discretionarily
5.Photoelectric tracking
6. Hole punching device/round hole or plane hole. 1 set
7.Frequency adjusting speed
8.Auto meter-counting
9.Auto gluing and auto break the glue
10.Hot-sealing knife
11.Have stick material function
12.With folding structure automatic folding the material
13.Static dispelling

Machine Description

RFQXT Auto Gluing Express Bag Making Machine

Machine Technical Data

Model		RFQXT-800
Length of finished bag		100-1000mm
Width of finished bag		150-700mm
Speed of bag making		150-250pcs/min
Accuracy of finish		0.01
Total power		7kw
Weight		1000kgs
Dimension (mm)	Length	6300mm
	Width	1300mm
	Height	1750mm

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

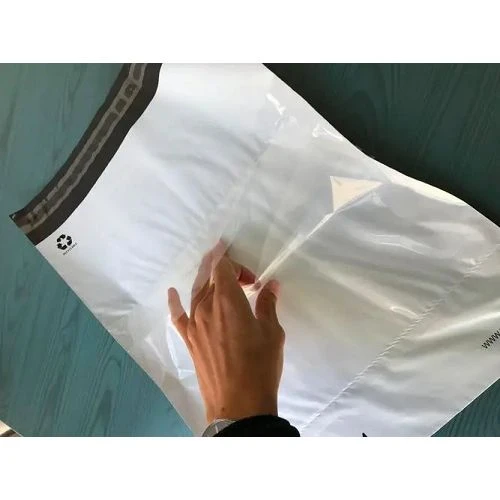

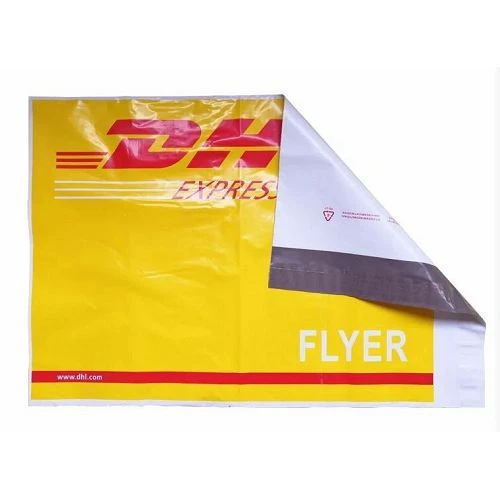

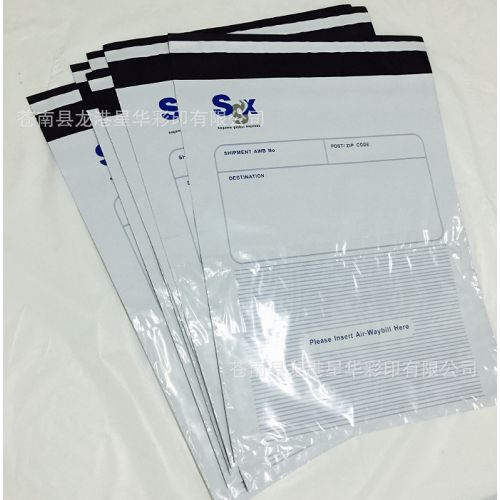

Finish Sample

Product Production Process

FAQ

Q: What does the production efficiency of a bag making machine depend on?

A: The production efficiency of a bag making machine depends on multiple factors, including machine type, specifications, operational skills, raw material characteristics, etc.

Q: What safety precautions are required for bag making machines?

A: Wear appropriate personal protective equipment, be familiar with operating manuals and safety regulations, ensure that the machine stops running, set up and adjust the machine correctly, avoid touching moving parts, conduct regular inspections and maintenance, prevent debris from entering the machine, avoid overloading, train and guide operators

Q: How to improve the production efficiency of bag making machines?

Optimize Parameter Settings: Adjust heat sealing temperature, speed, and other parameters based on material and bag type.

Regular Maintenance: Keep the machine in good condition to reduce the failure rate.

Personnel Training: Improve operators' skill levels to enhance operational efficiency.

Automation Upgrades: Increase automation levels, such as automatic unwinding, automatic cutting, etc.
