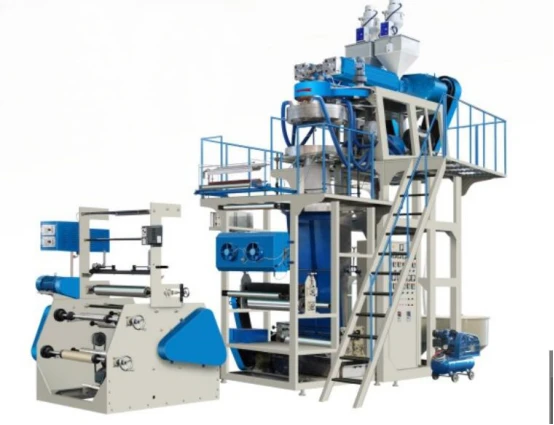

PP Film Blowing Machine
(machine type below:SJ-45 FM-500 PP Film Blowing Machine)
Main Technical Variables:
Diameter of screw: Φ45mm
L/D ratio of screw: 1:27
Max.Width of Film:200-500mm
Rotation speed of screw stem: 0-120rpm

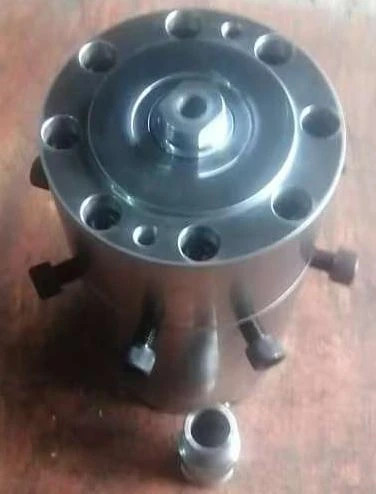

Qyt.&size of die head: Rotating die head,1pcs, Φ250mm(High-precision hard
chrome plating by quenched and tempered treatment),rotating way:360°rotation
Thickness of film: 0.01-0.10mm(Thickness of single layer)
Max. reduced dia. of film: 600mm
Power of main motor: 12kw frequency variation 380V, 50Hz
Total power: 30kw
Max.output: 35kg/h
Overall dimension: 4000×2500×4500mm
Configuration:
Extruding part:
Single screw extrude head
Material of screw and barrel: 38CRMOALA(zhoushan)
Manual change filter device, 45 steel hot treat(change filter after removing the screw)
Heating control region: 6 parts(a group of die head,rotating,tee,barrel exit,feed opening, and medium section), Digital display temperature control
Adopt stainless steel heater
Barrel cooling blower: 2 groups,Voltage:380V,Power:120W*2
Blower: 0.75kw inverter, inverter use 1.5kw
Cooling wind ring: Aluminum alloy rotating wind ring
Gear box: Hardening teeth surface gear reducer type：146
traction part:
Height of machine: 4.8m-5.5m. High-precision hard chrome plating rubber roller, Width of rubber roller:700mm. Towing line speed:0-50m
traction motor: 2.2kw frequency inverter, 2 group clip shaft pressure
rewinding parts:
rewinding method: adopt centre moment double rewinder,adopt high precision hard chrome plating rubber roller,double public spaces,non-stop machine (double collecting double sides adopt independent motor)
Qyt. Of motor: 3 moment motors
Qyt. of roller : 4pcs rewinding airshaft
Accossiery part:
Inverter use KEWO
Main motor use DEDONG
one set of attachment tools,
one pc of air pump,
three pcs of water cooling ring.(big,middle,small)
