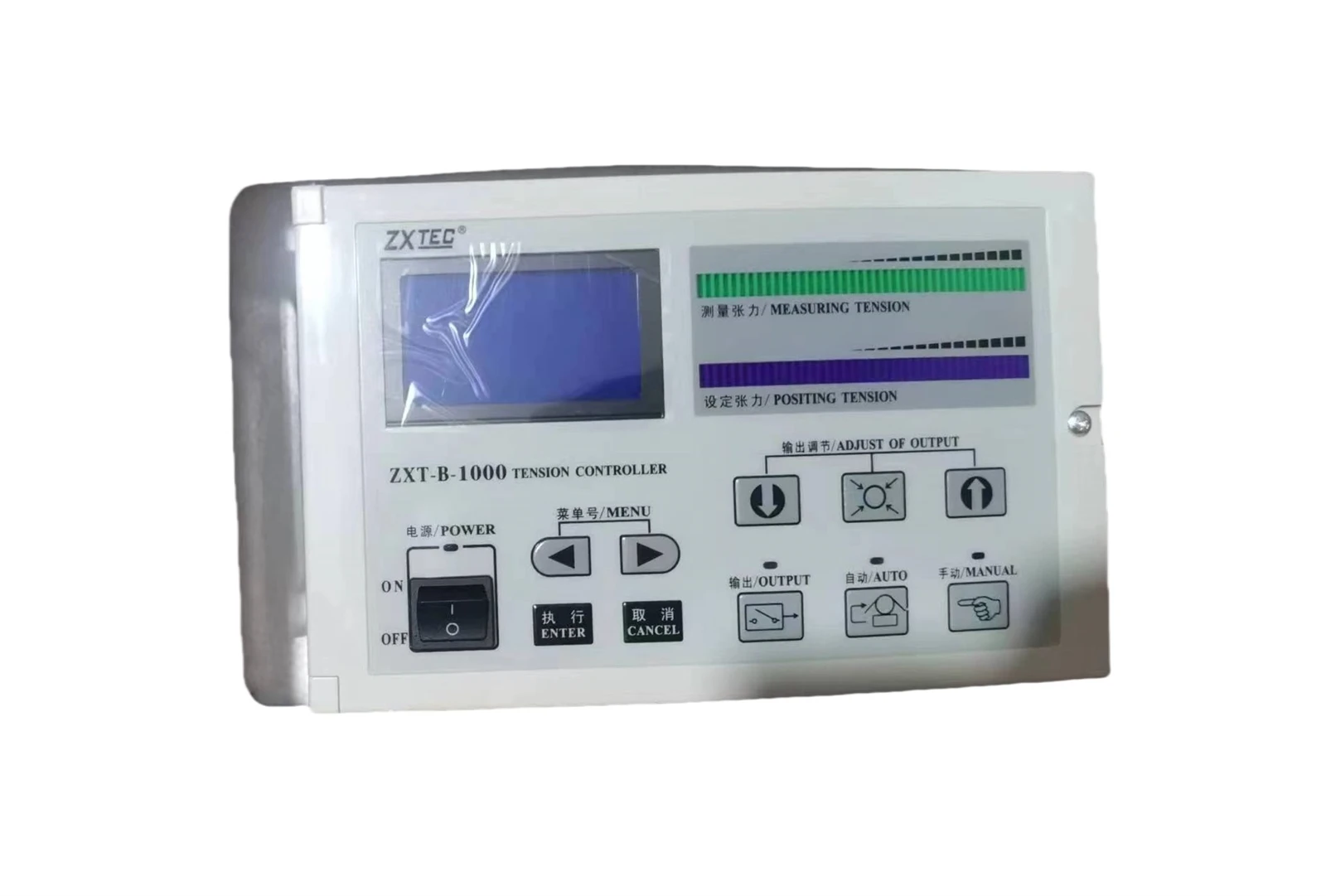

ZXT-B 600 Automatic Tension Controller
Products name
Auto Tension Controller (ZXT-B600)
Brief instruction:
ZXT-B series of automatic tension controller is mainly made up of tension detector, high accuracy A/D, D/A converter and microcomputer of high performance…etc. It realizes permanent tension of roll materials according to compare the tension of roll material measured by tension detector with the goal tension of settlement first, then through microcomputer PID operation and adjusting D/A output to change excitation electric current of magnetic powder clutch/ brake or torque of servomotor automatically. The controller can be used in several occasions needed to carry on measuring and controlling accurately with the tension and have application extensively with flexible in usage.
1.The LCD can be chosen to show in Chinese or English.
2.It is convenience to exchange automatic with manual
3. Tension detector is connected up simply and conveniently.
4. Set up parameter conveniently.
5. It has function of taking the duplex location changes the axle to output.
Parameter:
|
Measure accuracy: |
∠±1Newton |
|
Sample pace: |
100ms |
|
Main output way: |
Permanent electric current output DC 0-2A (mix load impedance 8-12Ω) |
|
Assistance output: |
Analog signal output DC 0-5V (MAX 10MA) |
|
Size of front-panel |
245×155×140(mm)(length × breadth × height) |
|
Size of installing: |
230×150×120(mm)(length × breadth × height) |
|
Power supply: |
180V to 240V AC 50/60Hz |
