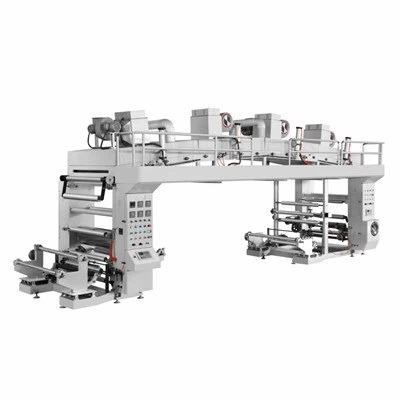

Dry Laminating Machine

Send Inquiry

Product Introduction

Machine name

High Speed Dry Laminating Machine

This machine suitable for laminating BOPP,PET,CPP,PE and other plastic film, aluminum foil and paper.

This machine can supply glue in roll type material,pass from the heat oven until the slovent overflow,hot press together with another material. finally can Light and moisture proof,It is good choice to make package of food.

product-750-437

Machine Description

1.Unwinding and rewinding adopt double-position Gyration.

2.The first unwinding and second unwinding with automatic correction function.

3.The rewinding can be automatically receiving without stopping.

4.Closed loop tension control system for four motors

5.Four sections of oven heating

6.With well glue device after coating

Machine Technical Data

type	GFA800	GFA1100
Laminating width	820	1120
Max diameter of unwinding	600mm	600mm
Max diameter of rewinding	800mm	800mm
The max laminating speed	200m/min	200m/min
Tension precision	3-20kg	3-20kg
Total power	105kw	135kw
The space of walkway	L: 10000mm W:500mm H:2000mm	L: 10000mm W:500mm H:2000mm
Overall dimension	1150032003500mm	1150035003500mm
Weight	10000kg	12000kg

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Finish Sample

product-800-259

Product Production Process

FAQ

Q: Is laminating easy?

A: It depends on the type of laminating machine you have, usually you need to put the document in a laminated bag or cover it with laminated film, and then feed it into the machine.

Q: What can you not put in a laminator?

A: Combustible materials, sharp objects, toxic substances, oversized items, and untreated wet items are not suitable for use with laminating machines

Q: Is laminating film waterproof?

A:Yes,Laminating film seals paper and other materials between layers of plastic with heat and pressure, creating a waterproof barrier. This protects documents from moisture, dirt, and damage, making them easy to wipe clean and ideal for preserving important items like signs and documents.

Hot Tags: dry laminating machine, China dry laminating machine manufacturers, suppliers, factory

Plastic Film Roll Laminating Machine

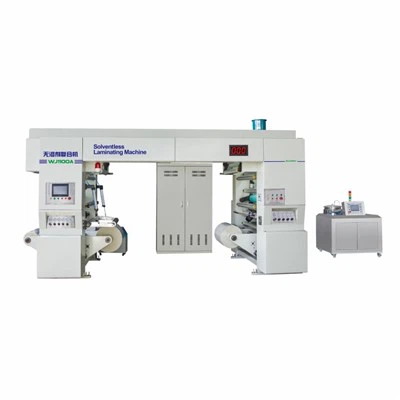

SolventLess Laminating Machine
