ELS Driving High Speed Rotogravure Printing Machine

Send Inquiry

Product Introduction

Machine name

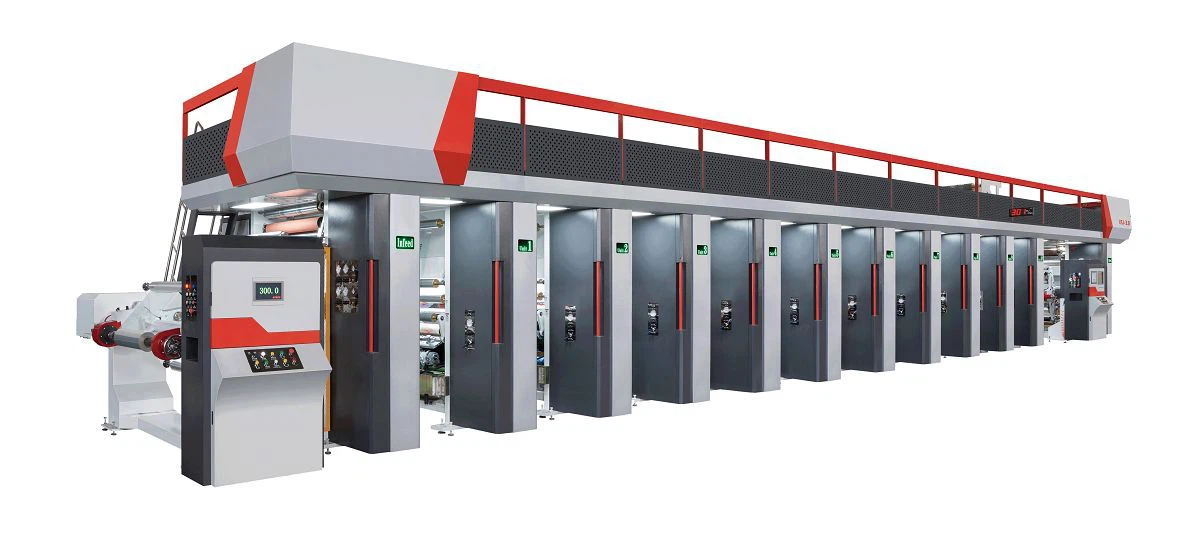

ESJ-3.0 ELS Driving High Speed Rotogravure Printing Machine

This machine drive by ELS system in each color. Use direct electronical drive type,printing unit use servo motor, connect with the printing cylinder.achieve digital printing, high speed,intelligent.

Printing speed 300meters per minutes.It is high capacity. The application field: food package, industry package,printing factory and so on. Some use in coffee package, tea leave package, and so on.

002

Machine Description

Materials

1.BOPP:12-60μm

2.PET:10-60μm

3.BOPA:15-60μm

4.LDPE:35-100μm

5.PE:35-100μm

6.Paper:30-120g/㎡

Machine description:

1.Printing cylinder Installation method:Pneumatic shaftless
2.Full machine Electronic transmission, servo motor controller.
3.Longitudinal and horizontal automatic color register structure.
4.Indirect Ink Transfer device.Ink delivery roller controlled by independent frequency conversion
5.Scaper system Standard casting closed box scraper
6.Separate unwinding and rewinding Structure.automatic cutting and receiving material. Machine no stop
7.Large air, high pressure energy saving heat oven.
8.No clearance doctor blade device.
9.Water cooling system

10.Loading method:Pneumatic air shafts

11.Ink tray:Closed ink tray

12.Unwinding and cutting method:Cutting knife from top to bottom↓

13.Rewinding cutting method:Cutting knife from bottom to top↑

Machine video

Machine Technical Data

Model	ESJ-3.0
Print Width	850/1050/1250mm
Maximum Mechanical Speed	320M/min
Precision of Register	0.1MM
The Diameter of Plate	120-300MM
The Diameter of Unwinding and Rewinding	800MM
Overall Dimensions	L19500×W4500/4800/5000×H3600mm

Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Finish Sample

Machine Part

Unwinder

Doctor blade

Rewinder

Automatic change roll

Printing part

Control switch

Product Production Process

FAQ

Q: How many color can print?

A: This machine can print 1-10color,like 4color,6color,8color,10color and 12color.According to your requirement.

Q: Are you trading company or manufacturer?

A: We are a manufacturer .we also have a trading company to do export work.

Q: What is your term of payment?

A: We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

Q: Where is your factory located ? How can I visit there?

A: Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need,we can we pick you up from airport or train station.

Q: What about the warranty?

A: All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 120usd / day / person as salary.In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine's full life service, buyer pay for the material cost of exchanging spare parts and repairing.

Q: How long is your delivery time?

A: The general delivery time is 30-90 days after receiving your order confirmation.
