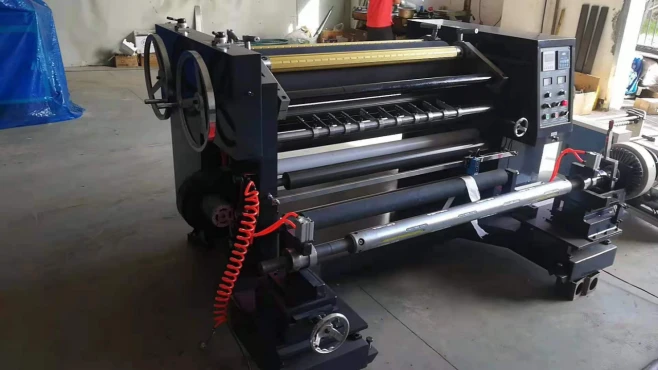

High Speed Surface Loading Slitting Machine
machine name
LFQ High Speed Surface Loading Slitting Machine

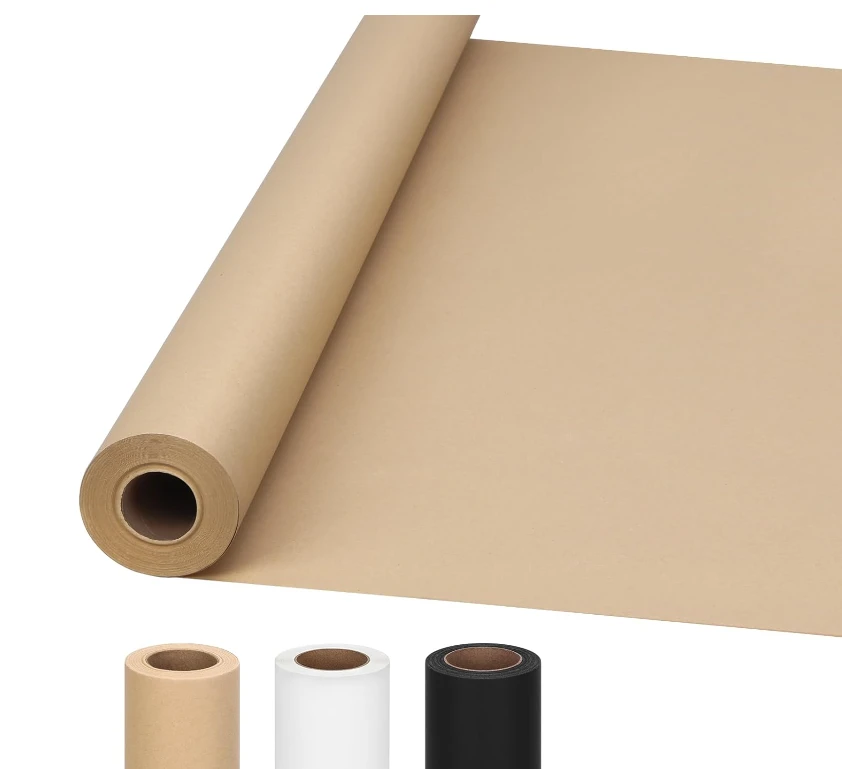

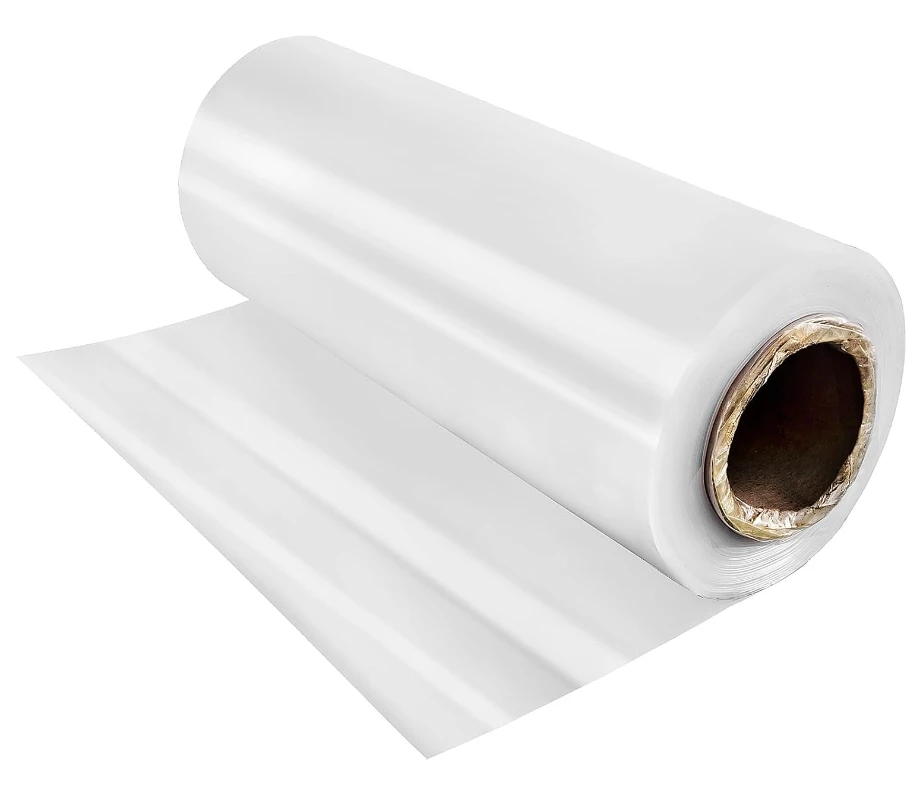

This slitting machine is suitable for slitting BOPP,PET,CPP,PVC
Paper and other big roll type material
machine video
main characterisetics
1) The Machine uses an asynchronous motor drive; the inverter adjusts speed
2) Auto-counting meter, auto alarm function
3) Use A/B airshaft structure, easy to load and unload material
4) Unwinder uses photocell rectify deviation, let the different material can slit
5) Manual type loading material in unwinder, equipped with a lifter.
6) Use a doctor blade to slit; have the blade slit the side and collect the waste film.
7) Main machine traction uses a pneumatic clip type cylinder to control
8) Drive system: use the main motor to drive the main traction shaft; the main shaft drives the main shaft
9) Double rewinder, driven by the main shaft to do rewinding, high speed or low speed, the end of the shaft will be very clean
machine pictures
Unwinder
The unwinder adopt air-shaft, the diameter of the air shaft is 76mm.
10kg Magnetic powder brake
EPC
Slitting part(10pcs doctor blade)
Exhaust system

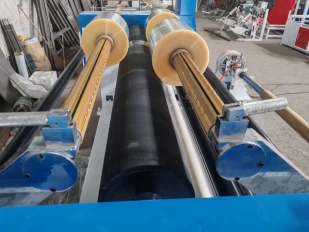

Rewinder

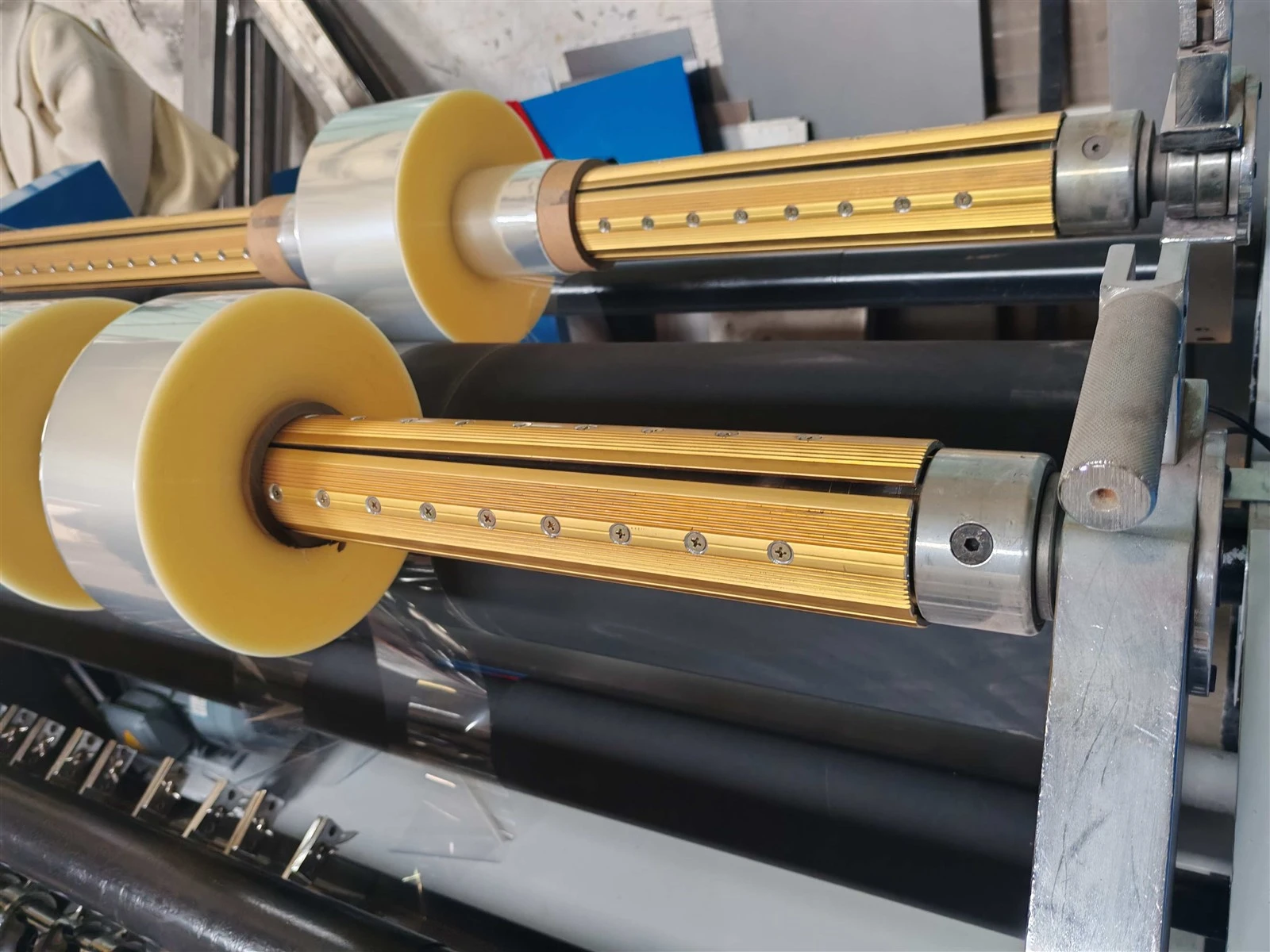

(1)center durm to drive 2pcs air-shaft for rewind material roll.The diameter of air-shaft is 76mm.

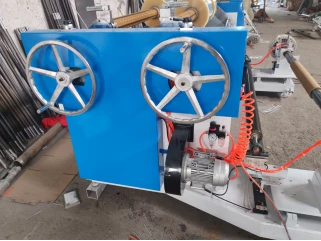

(2)2pcs handwheel to control 2pcs air-shaft to unloading material roll.
Products Description
| Type | LFQ |
|
Max width of material |
1600/1800/2000/2200/2500mm |
|
Max diameter of unwinding |
Φ600mm |
|
Max diameter of rewinding |
Φ450mm |
|
Scope of slitting |
100-2500mm |
|
Thickness of material |
12-30μm(doctor blade) |
|
Sltting speed |
300m/min |
|
Rectify precision |
±0.5mm |
|
Total power |
6.5kw(according to machine) |
Products Description

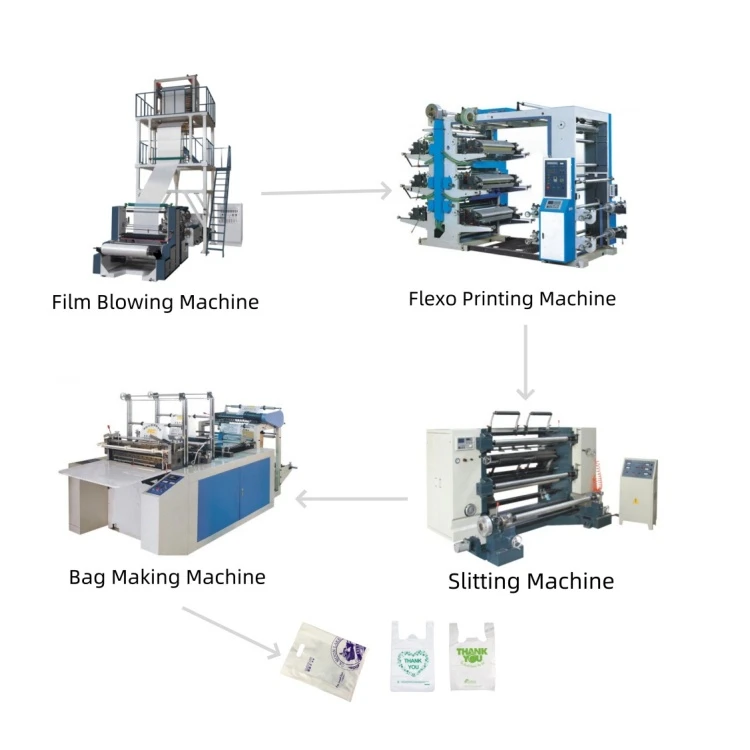

Product Production Process
FAQ
Q: What does a slitting machine do?
A: A slitting machine is used to cut large master or parent rolls (or metal coils) of material into narrower, precise strips and rewind them into smaller individual rolls.
Q: What is slitting?
A: Slitting is a manufacturing and converting process that cuts a large, wide roll or coil of material into multiple narrower, more manageable strips or smaller rolls. It is commonly used for metals, paper, plastics, and fabrics.
Q: What is a slitting blade?
A: They are used to cut or convert materials down into narrower strips and are usually circular in shape. As they are circular, slitting blades have a 'continuous' blade edge.
