plastic shopper bag machine

Send Inquiry

Product Introduction

Machine name

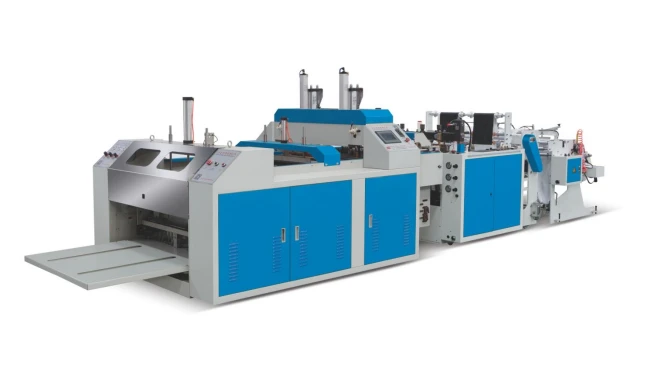

Automatically Bunding Vest Bag Making Machine

The fully automatically bundling vest bag making machine is specialized in producing vest bags (also called T-shirt bags or shopping bags). It integrates automatic folding and bundling functions on the basis of traditional bag making machines, which can automatically organize the finished bags into small bundles and tie them with rubber bands, without the need for manual counting and bundling and can be directly packaged, which used for supermarket shopping bags, takeaway packaging bags, retail bulk bags, garbage bags and trash bag ect.

Machine Characteristics

This machine suitable for HDPE and LDPE material.The machine adopt heat sealing and hot cutting technology, sealing and cutting at the same time and adopting double working line(2line) production design ,so can improve the machine production efficiency.

The whole machine adopts servo motor control, with precise positioning and fast response, ensuring stable high-speed operation.

Machine with inspection system, when material blockage, no material and material breakage, machine will automatically stop and give an alarm to reduce waste.

Easy to maintain design: The sealing knife can be quickly flipped over for easy cleaning.

Machine Video

Machine Technical Data

Model	GFQ-R450×2
Max.Bag-making width	20-300mm×2
Max.Bag-making length	100-650mm×2
Bag-making thickness	0.015-0.035mm
Bag-making speed	140-350pcs/min×2(depend on size of bag )
Air pressure	5kg/‌cm²‌
Total power	6KW
Weight of machine	1200kg
Overall dimensions	3300(L)X1980(W)X1800mm(H)

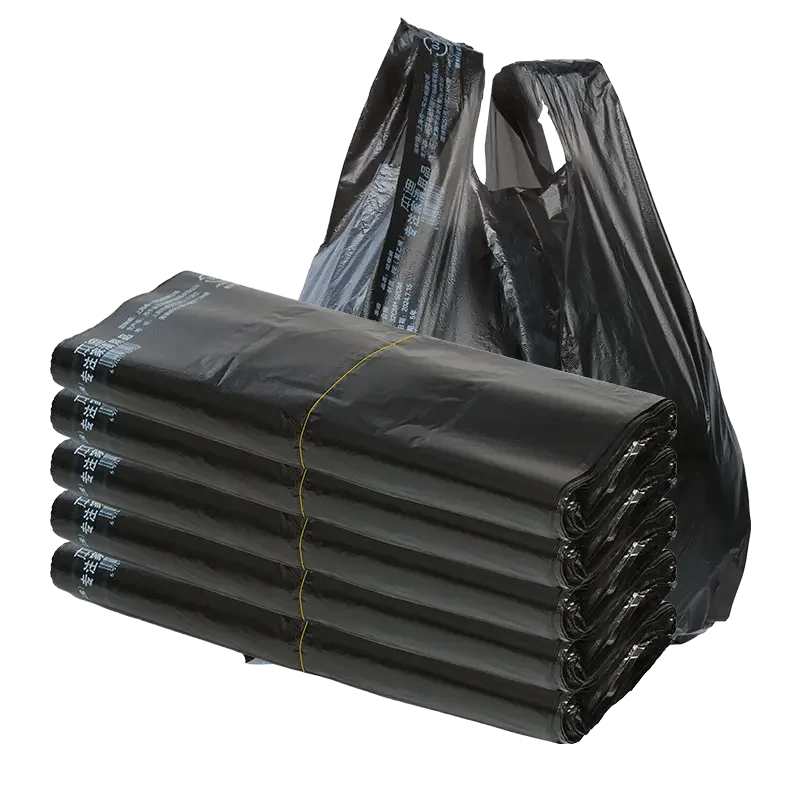

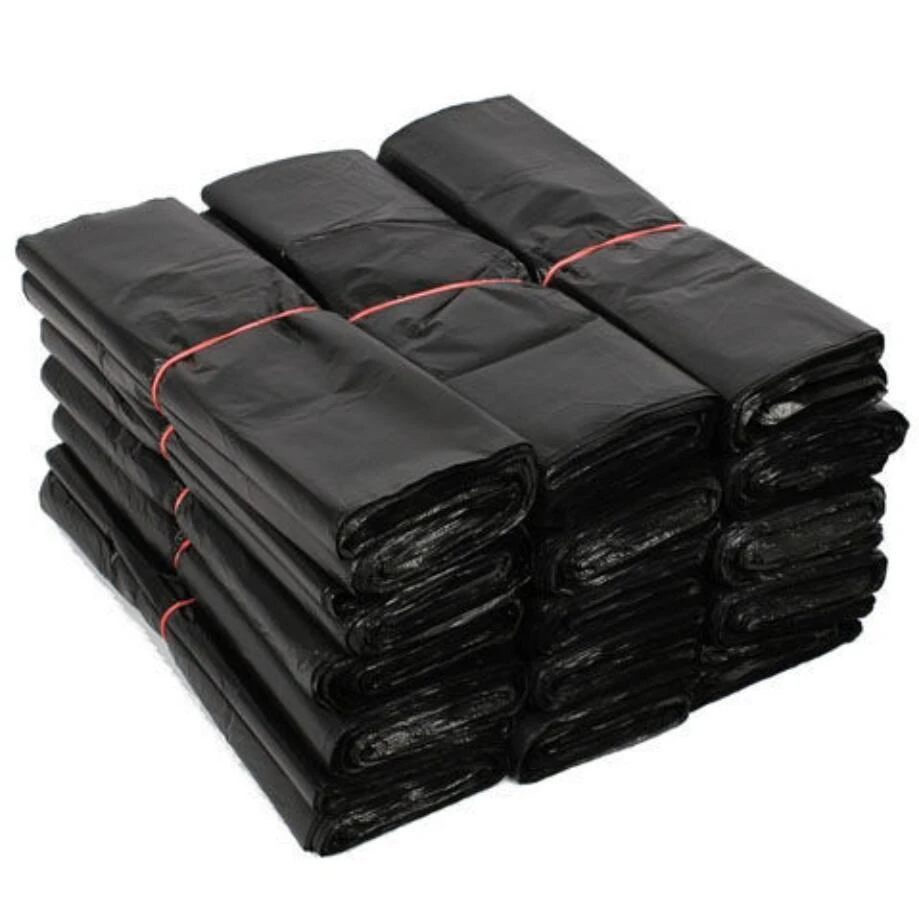

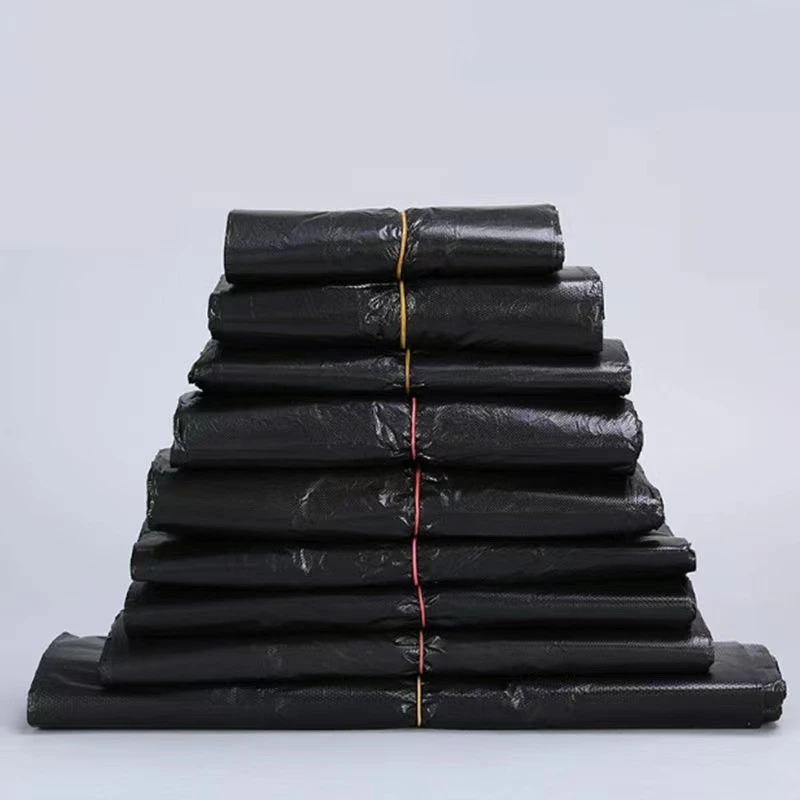

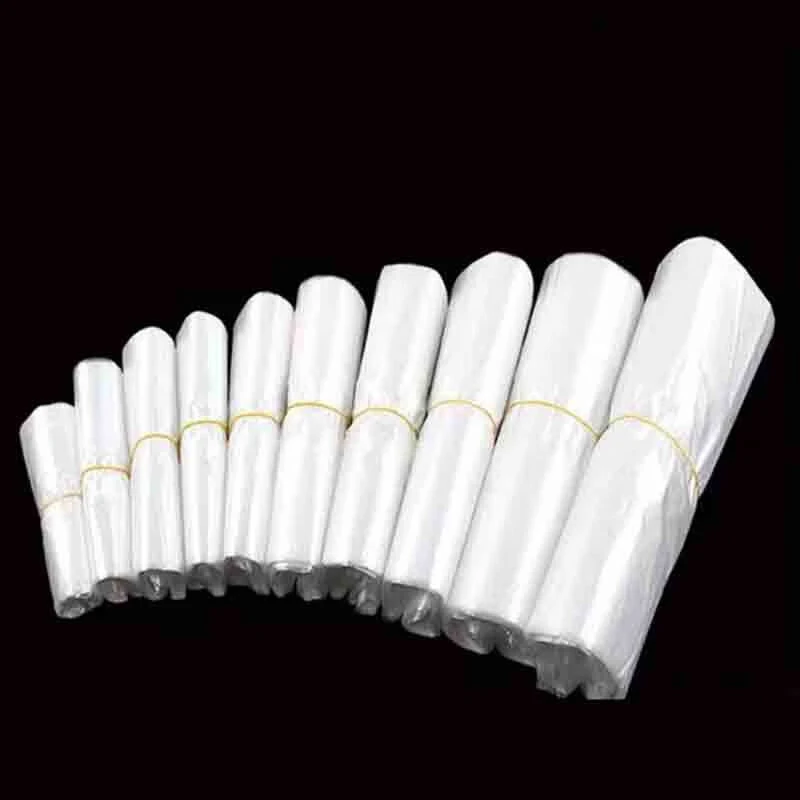

Product samples

Oriental Hotel

FAQ

Q: What's the working principle automatically vest bunding bag making machine?

A:The rubber band conveying device sends the rubber band to the preparation position and open it, then move mechanical arm wraps the stretched rubber band onto the folded bag,final bundling is completed.

Q: What's the advantage of automatically bundling vest bag making machine?

A: labor-saving.This can significantly reduce production costs for large-scale but low profit products such as supermarket shopping bags and garbage bags.

Q: What are the precautions when the machine is stopped?

A:1. Clean all parts of the equipment in a timely manner;
2. The heat sealing knife is in the open position to prevent the raw materials from being burned out;
3. Before long-term shutdown, the belt shavings in the bundling part should be cleaned to prevent affecting the machine start-up.
